Single track single chuck cue lathe, billiard cue lathe, billiard cue repair machine, billiard cue repairer,

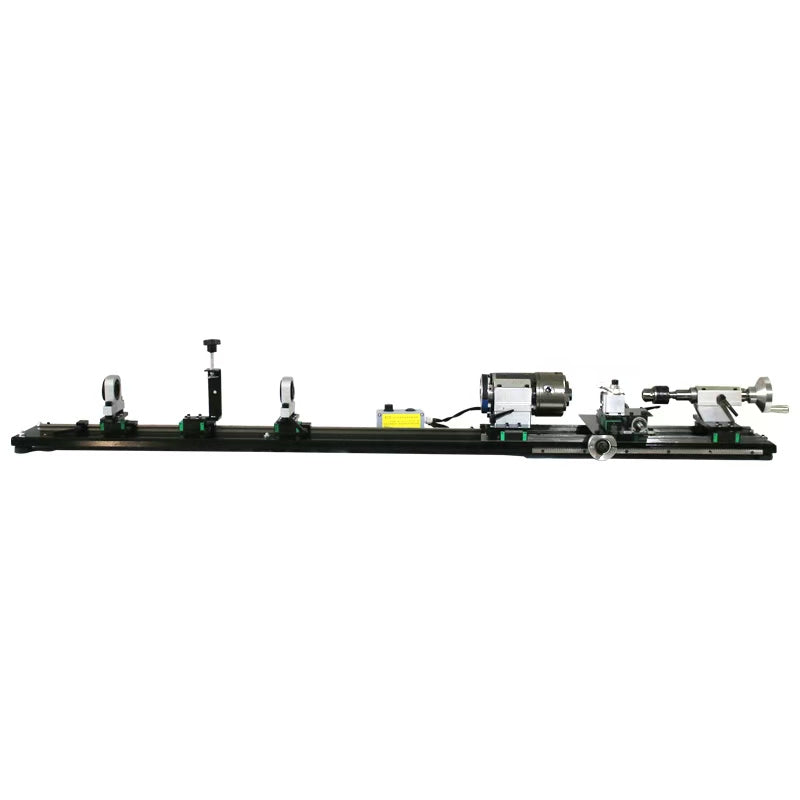

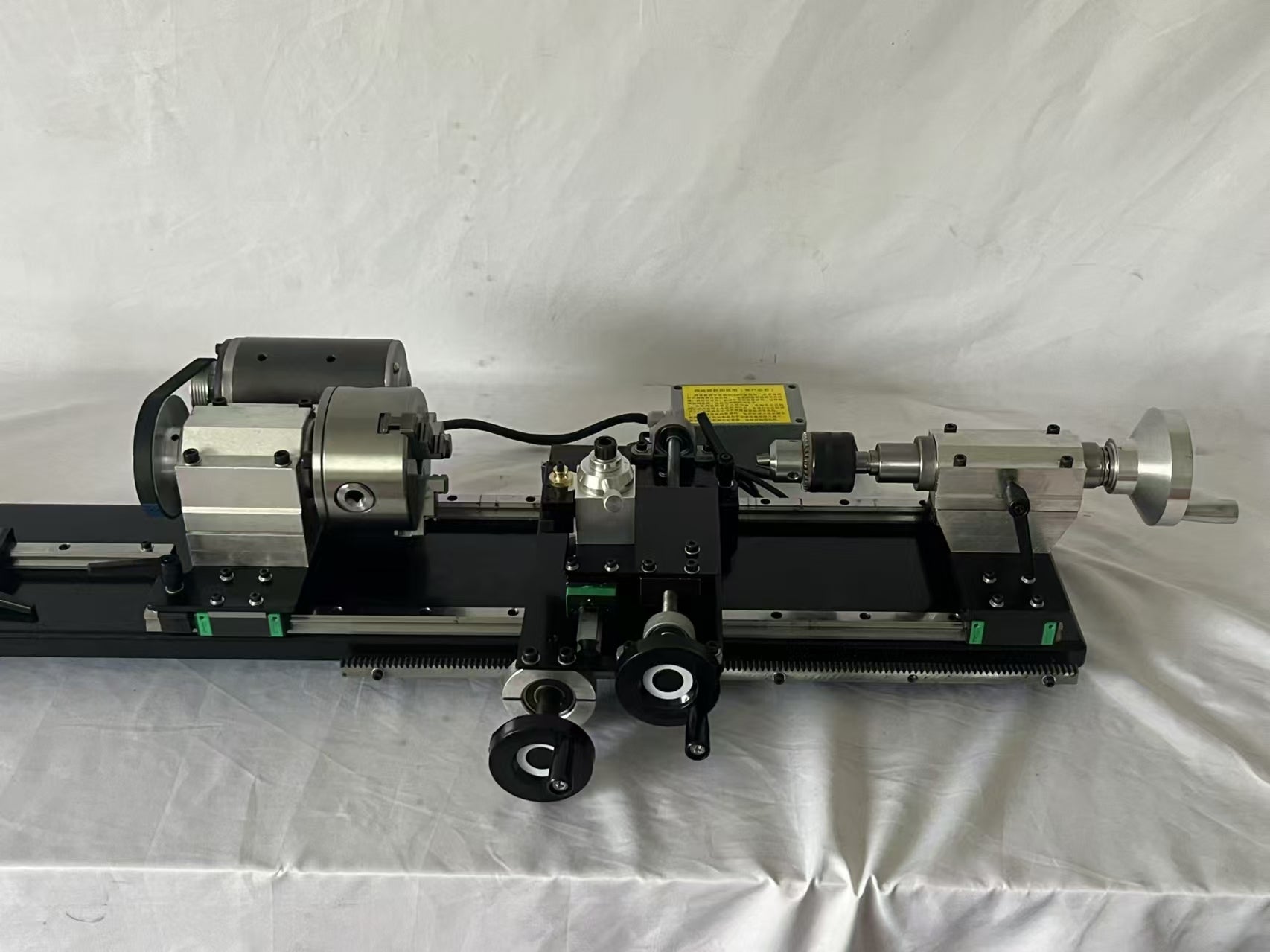

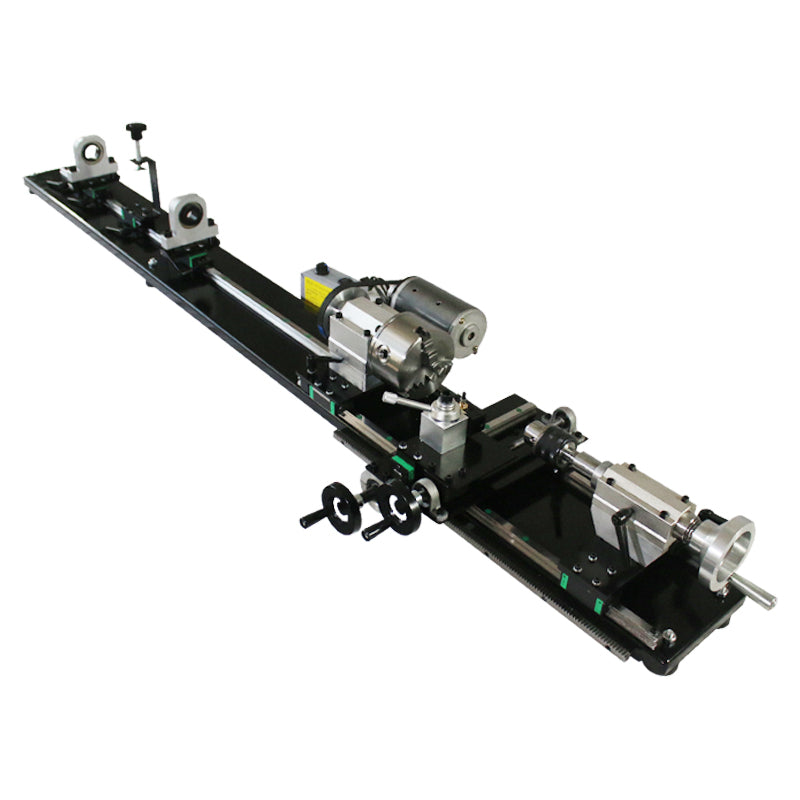

Single track pool cue repair lathe, single track double tailstock, more stable, 9 core functions: changing the head, changing the copper hoop, changing the first angle, wrapping the handle, wrapping the handle, polishing, grooving, cue straightening, repairing the counterweight. Comes with a 3-jaw chuck, sheet metal bed, precision slide rails, and pure copper wire speed control motor.

[Material]: The billiard cue repair machine uses thickened steel plate as the bottom plate, and the surface of the bottom plate is wrapped with thickened stainless steel plate. The double tail bearing seat, tail seat and spindle seat are all made of aluminum. The bottom plate adopts a large-diameter thickened single linear guide design. The cue clamping concentricity is high, the whole machine is heavy, and the overall stability is high;

[Motor]: The pool cue repair machine is equipped with a 550W high-power brushless motor, voltage of 110V, 60Hz, American standard plug, speed 0-3000r/min, forward and reverse stepless speed control box, and digital display function, strong power, stable operation, low noise, long service life;

[Spindle]: The spindle through hole of the pool cue lathe is 20mm, and it adopts a 100mm linkage three-jaw chuck with an accuracy of 0.001-0.002 inches. It adopts a double tail drag bearing seat design with good stability and high precision. The spindle seat, middle drag plate and tail seat can move left and right on the guide rail to a limited extent;

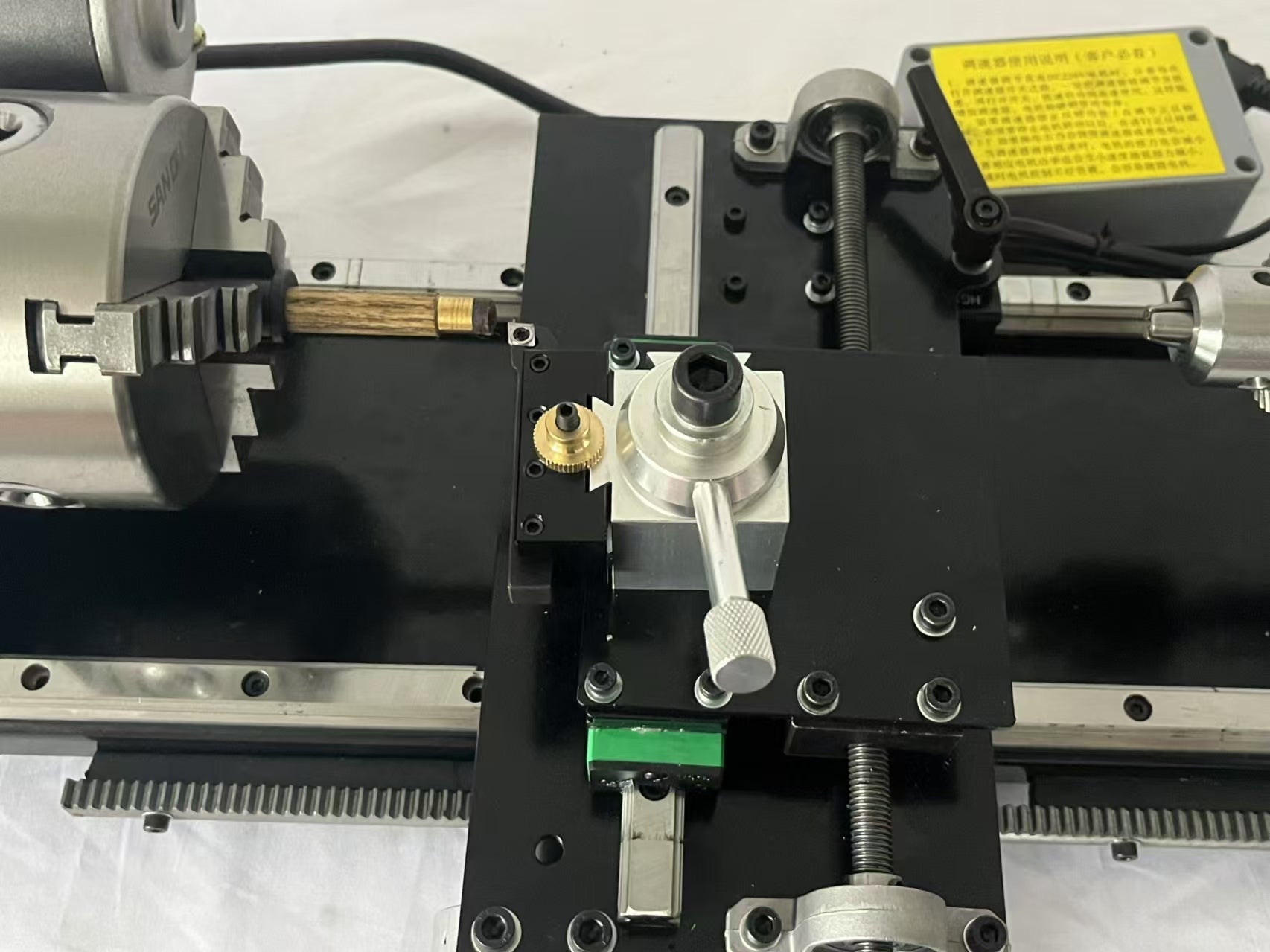

[Tool holder]: The pool cue lathe machine uses an aluminum American quick-change tool holder, which is fast to switch, precise in positioning, wear-resistant and lightweight;

[Tailstock]: The pool cue repair lathe machine adopts a high-precision adjustable tailstock and is equipped with a 1.5-13mm drill chuck, which ensures precise centering and more stable drilling;

【Machine Function】: The pool cue repair machine is mainly used for the maintenance and repair of various cues, such as replacing leather heads, replacing copper hoops, replacing first angles, making copper hoops and first angles, polishing and grinding, straightening, etc.

Motor Power: 550W

Voltage :110V/220V

Frequency: 50Hz/60Hz

Continuously Variable : 0--3000(Kw/rpm)

Size:1700mm*370mm*300mm

G.W/N.W: 46.8kg/28.6kg

Packing Dimension:1750mm*400mm*350mm
