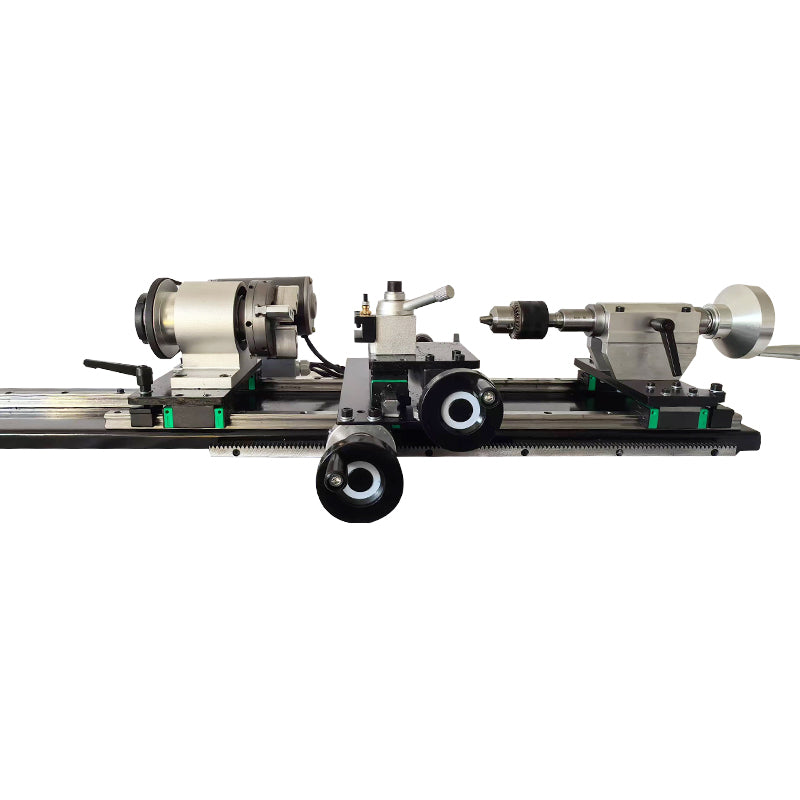

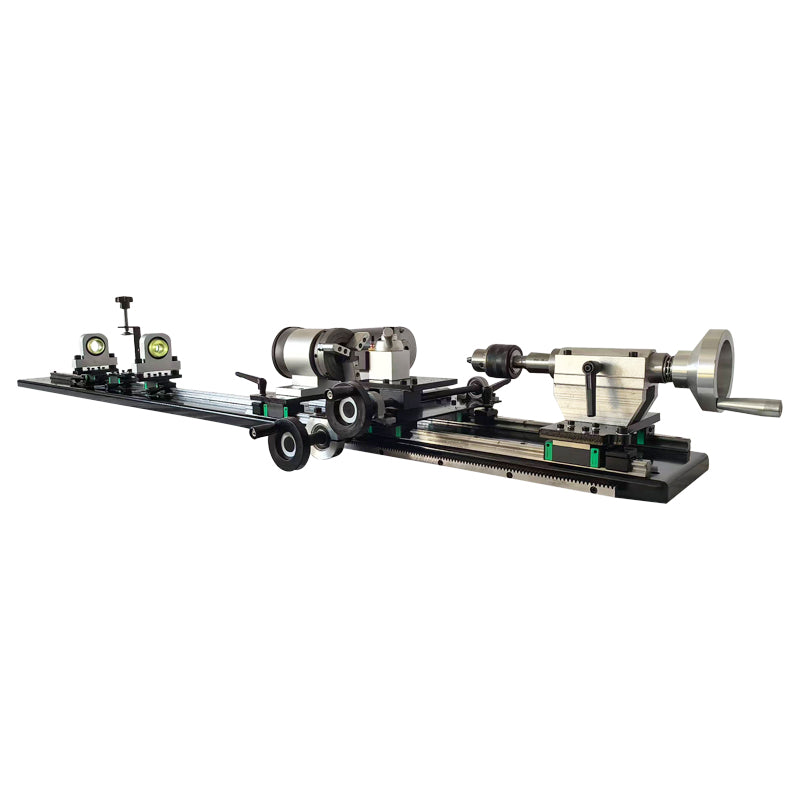

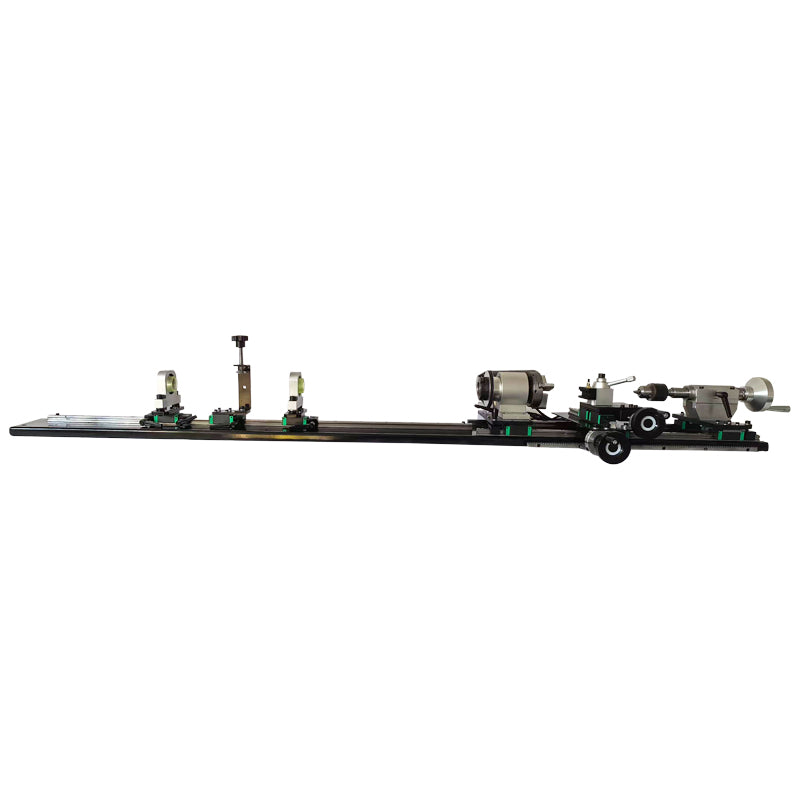

Billiard Pool Cue Lathe, professional single-track single-chuck pool cue lathe, integrated repair machine

The professional single-track single-chuck pool cue lathe is equipped with a high-power brushless motor, which is quiet and has a long service life. It is equipped with a high-precision hand-tightened chuck. The arc of the chuck claw perfectly matches the arc of the club and the concentricity is precise. The spindle can move left and right to increase the working space. It is equipped with an American quick-change tool holder for convenient tool change. The spindle through-hole diameter is increased to 32mm to meet various rod repair needs: repairing leather heads, changing copper hoops, polishing and grinding, connecting threads and changing counterweights, etc., to provide customers with more professional and comprehensive services.

This cue lathe combines professionalism and cost-effectiveness, suitable for both beginners and professionals.

[Material]: The billiard cue repair machine adopts thickened steel sheet metal body, and the double tail bearing seat, tail seat and spindle seat are all made of aluminum;

[Motor]: The pool cue repair machine is equipped with a 550W brushless motor, voltage of 110V, 60hz, American standard plug, speed 0-3000r/min, forward and reverse stepless speed control box, strong power, stable operation, low noise, long service life;

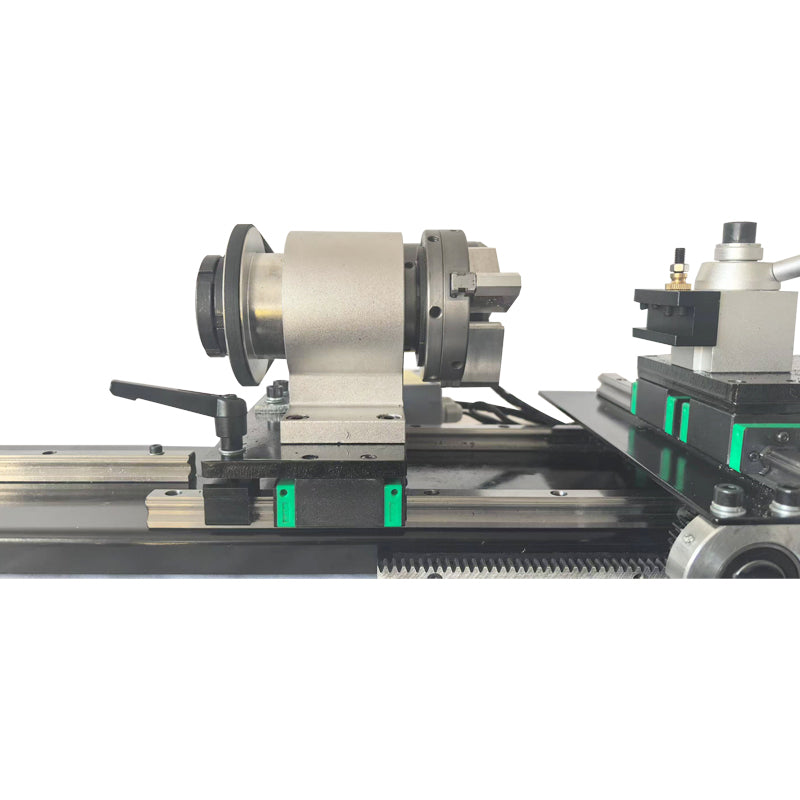

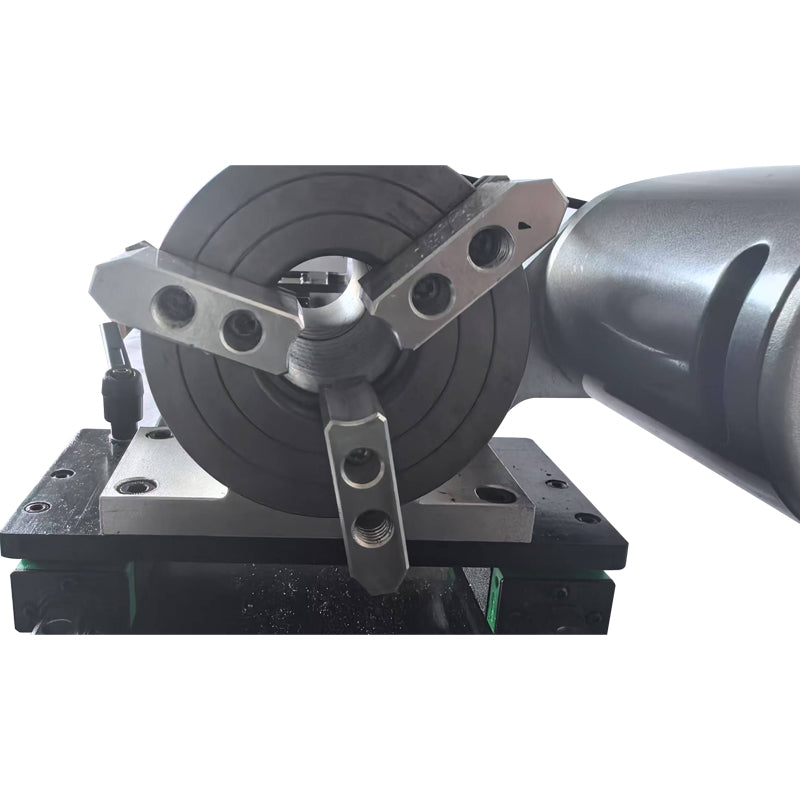

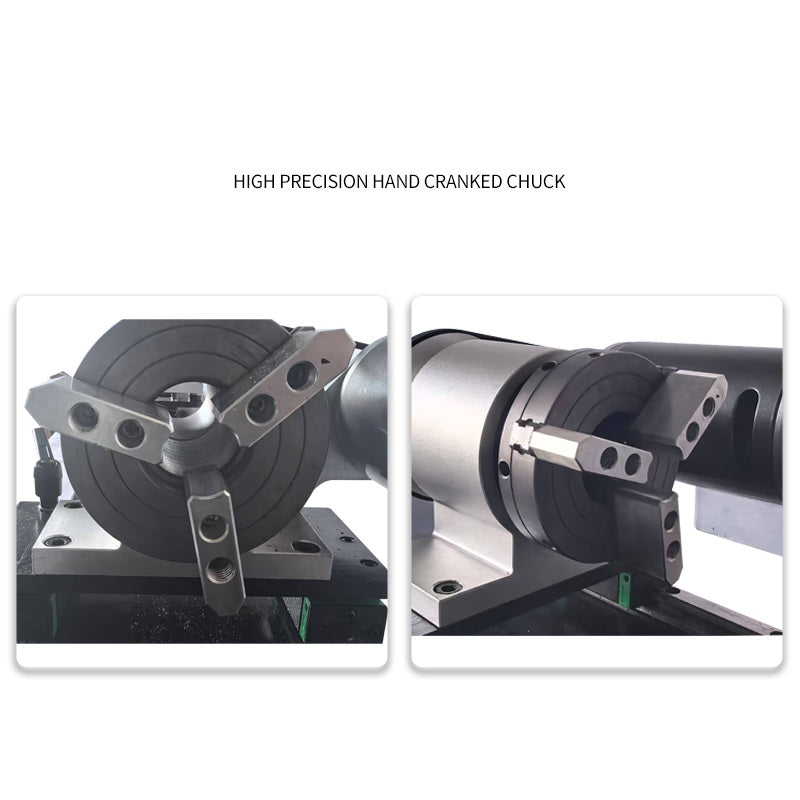

[Spindle]: The spindle through hole of the pool cue lathe is 32mm, and it adopts a high-precision hand-tightened chuck with an accuracy of 0.001-0.002 inches. It adopts a double tail drag bearing seat design with good stability and high precision. The spindle seat, middle drag plate and tail seat can move left and right on the guide rail to a limited extent;

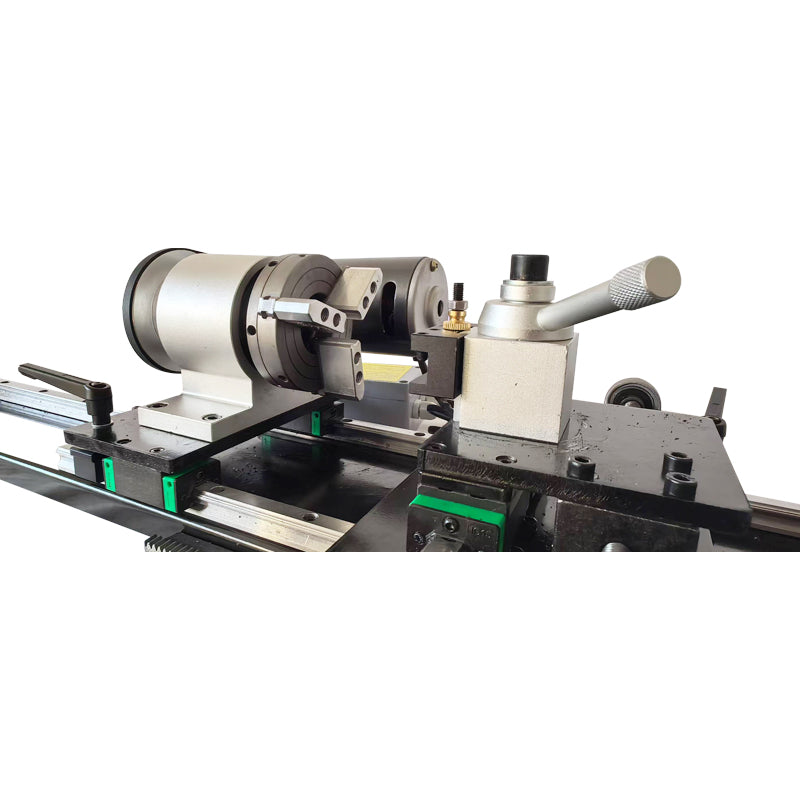

[Tool holder]: The pool cue lathe machine is equipped with an aluminum American-style quick-change tool holder, which allows for fast switching, precise positioning, wear resistance and lightness;

[Tailstock]: The pool cue repair lathe machine adopts a high-precision adjustable tailstock and is equipped with a 1.5-13mm drill chuck, which ensures precise centering and more stable drilling.

【Machine Function】: The pool cue repairing machine is mainly used for the maintenance and repair of various cues, such as replacing leather tips, replacing copper hoops, replacing first angles, making copper hoops and first angles, polishing and grinding cues, straightening, changing tapers, changing weights, etc.

Motor Power:550W

Voltage:110V/220V

Frequency: 50Hz/60Hz

Continuously Variable: 0--3000(Kw/rpm)

G.W/N.W: 46.8kg/28.6kg

Size:1700mm*370mm*300mm

Packing Dimension:1750mm*400mm*350mm
