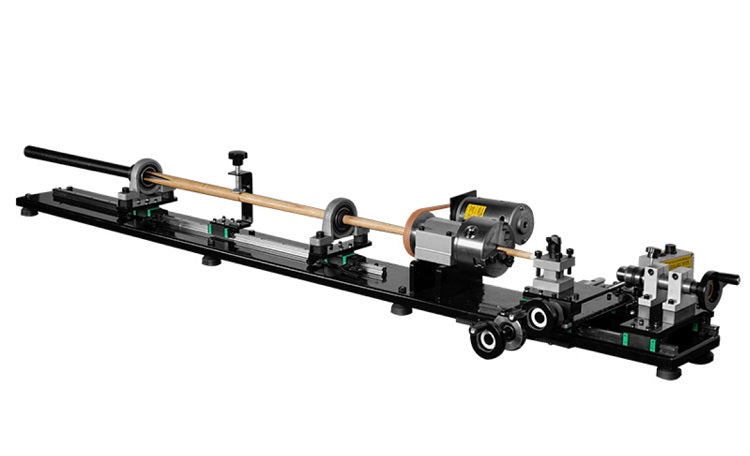

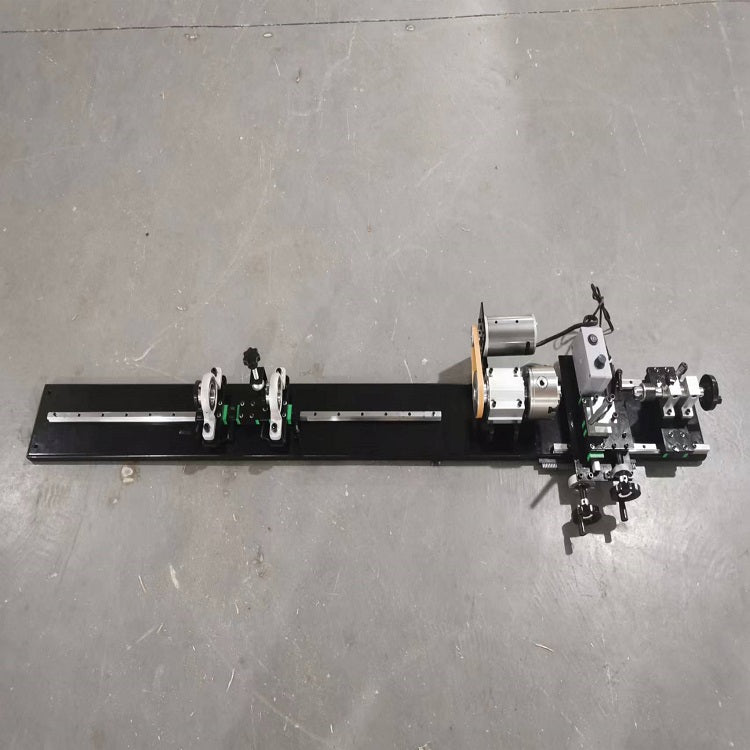

Billiard cue lathe, single track single chuck cue lathe, billiard cue machine tool, billiard cue repairer

      Single track pool cue repair machine, single track double tailstock, more stable, 6 core functions: changing the head, changing the copper hoop, changing the first angle,  polishing, cue straightening. Comes with a 3-jaw chuck, sheet metal bed, precision slide rails, and pure copper wire speed control motor.

[Material]: The billiard cue repair machine adopts thickened steel sheet metal body, and the double tail bearing seat, tail seat and spindle seat are all made of aluminum;

[Motor]: The pool cue repair machine is equipped with a 550W high-power brushless motor, voltage of 110V, 60Hz, American standard plug, speed 0-3000r/min, forward and reverse stepless speed control box, strong power, stable operation, low noise, long service life;

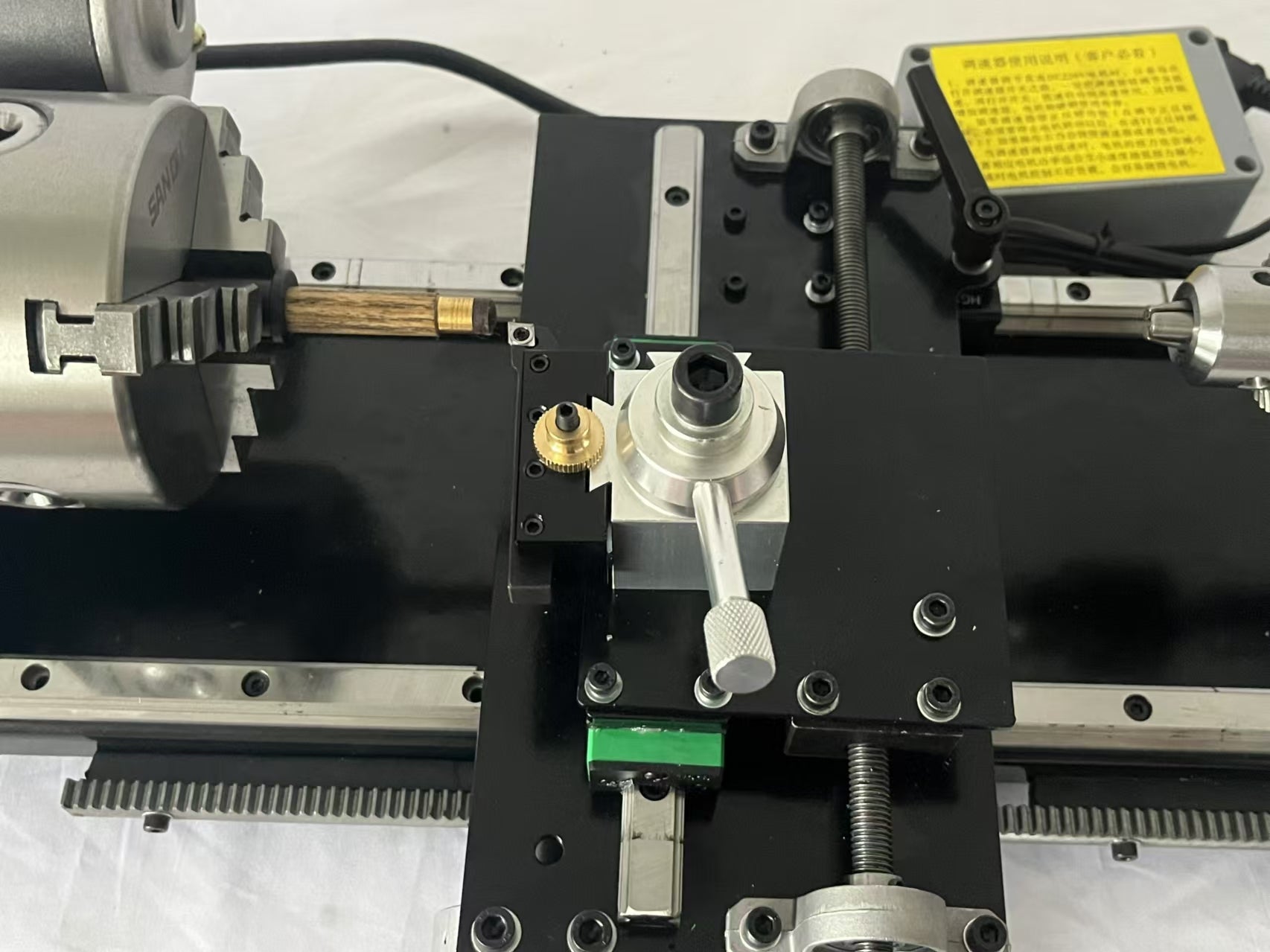

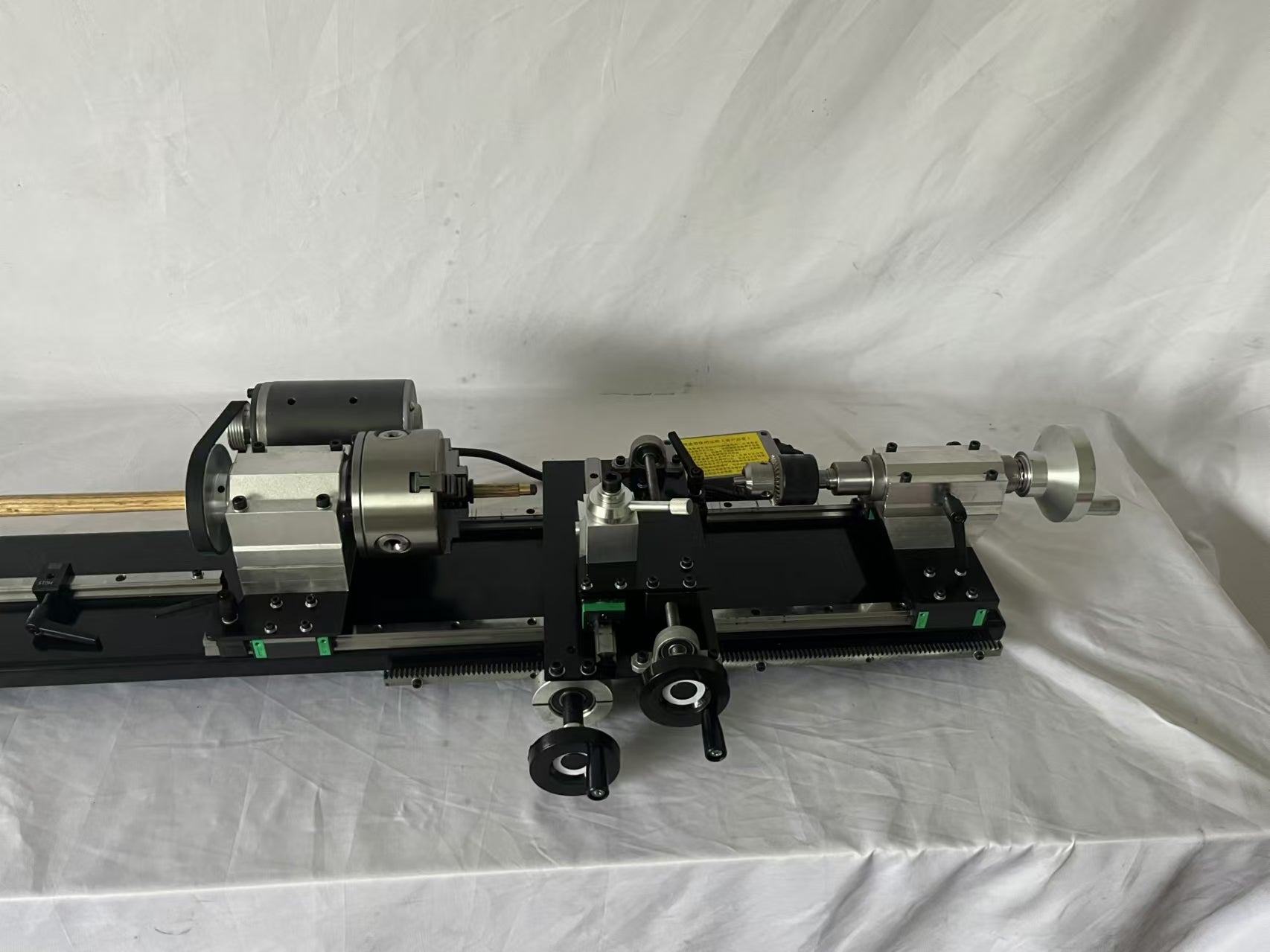

[Spindle]: The spindle through hole of the pool cue lathe is 20mm, and it adopts a 100mm linkage three-jaw chuck with an accuracy of 0.001-0.002 inches. It adopts a double tail drag bearing seat design with good stability and high precision. The middle drag plate and tail seat can move left and right on the guide rail to a limited extent;

[Tool holder]: The pool cue lathe machine is equipped with a two-station ordinary tool holder as standard, and can also be equipped with an aluminum American-style quick-change tool holder, which features fast switching, precise positioning, wear resistance and lightness;

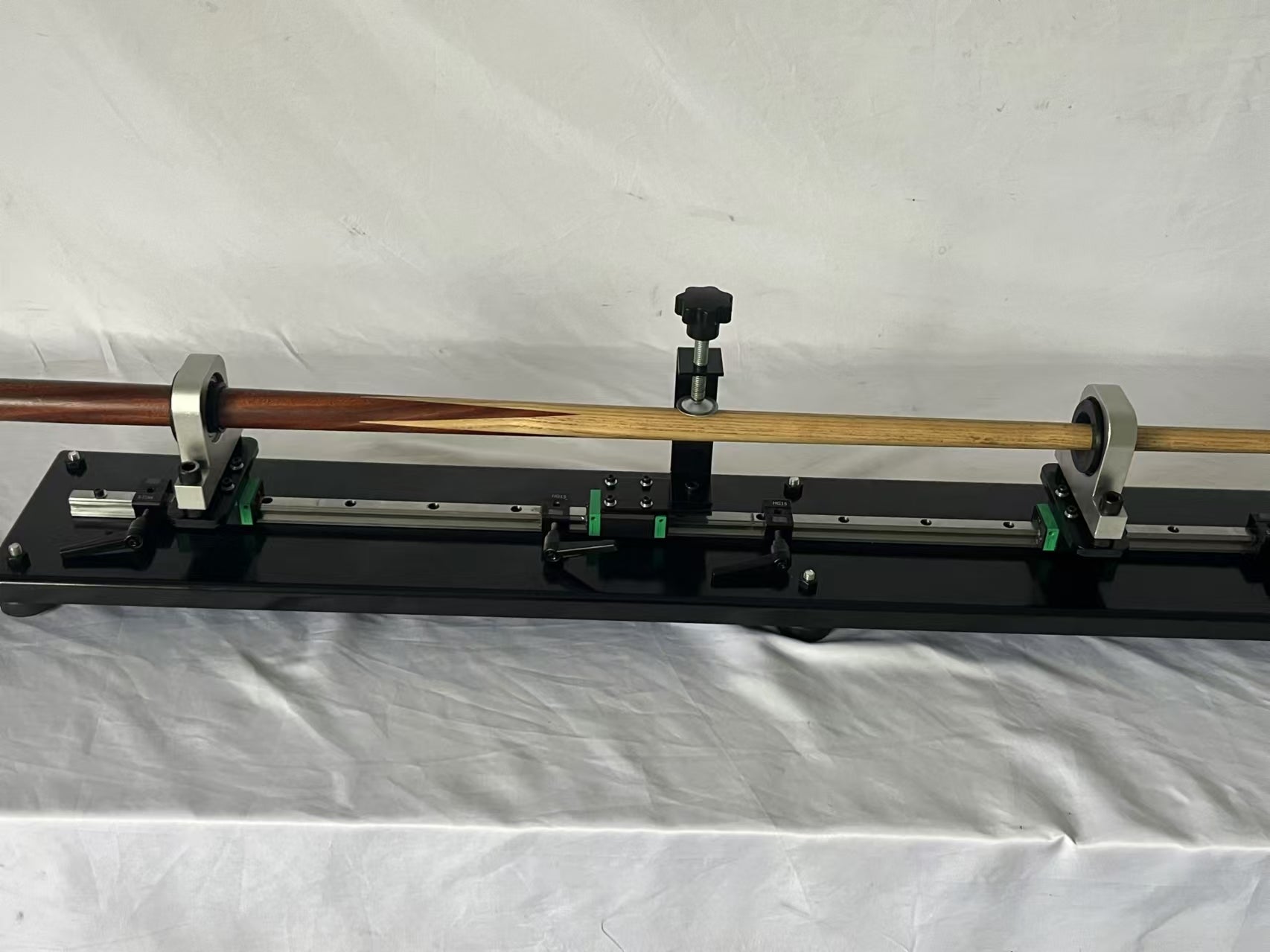

【Machine Function】: The pool cue repair lathe machine is mainly used for the maintenance and repair of various cues, such as replacing leather heads, copper hoops, changing the first angle, polishing and grinding maintenance, straightening, etc.

      Club recommended model, cost-effective entry-level billiard cue repair machine.

Motor Power:550W

Voltage:110V/220V

Frequency: 50Hz/60Hz

Continuously Variable: 0--3000(Kw/rpm)

G.W/N.W: 46.8kg/28.6kg

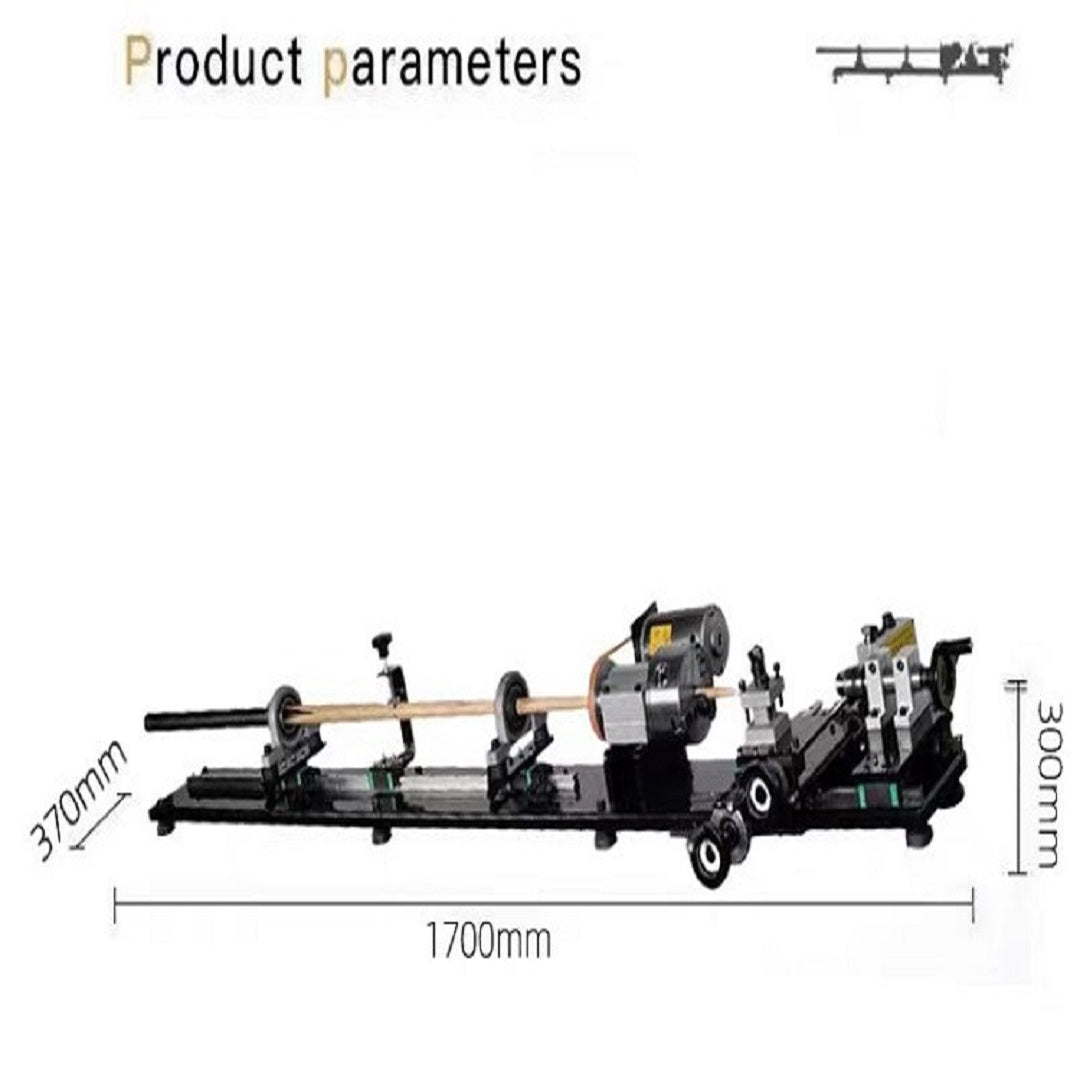

Size:1700mm*370mm*300mm

Packing Dimension:1750mm*400mm*350mm
