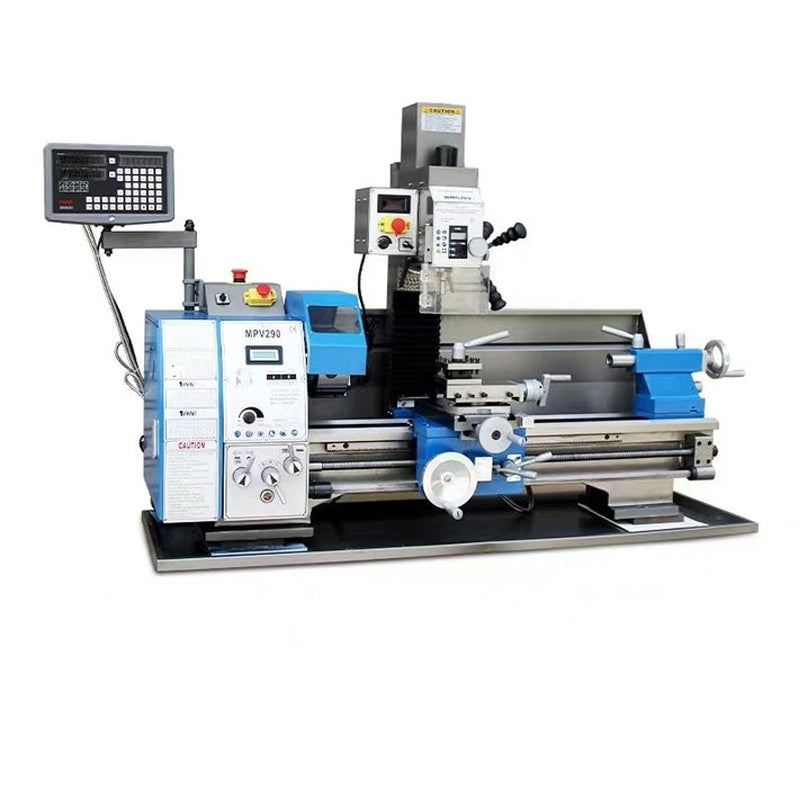

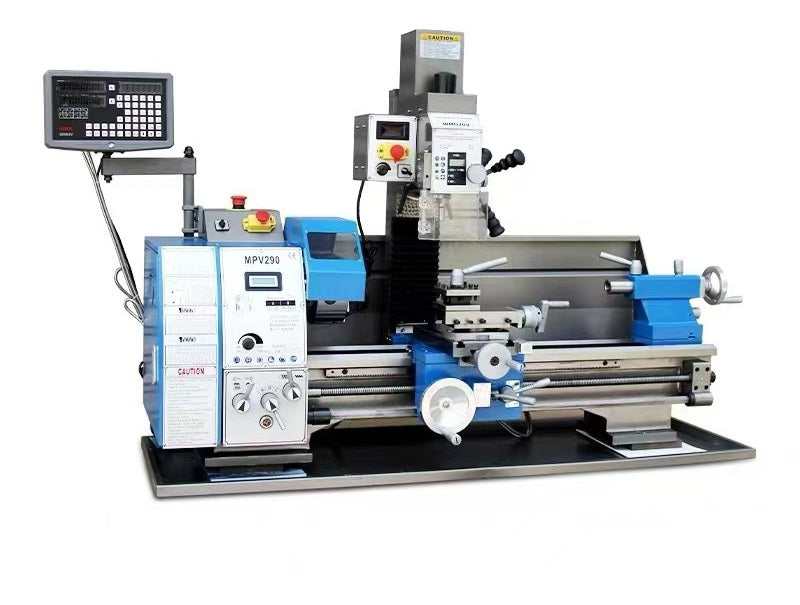

Turning, drilling and milling multifunctional machine

Professional machine tool equipment manufacturer, with various woodworking machine tools and metal machine tools, supporting product customization and OEM.

Maximum rotation distance of the bed: 290mm

Maximum rotation distance of the carriage: 165mm

Distance between the two centers: 700mm

Spindle taper: MT4

Bed width: 180mm

Spindle aperture: 38mm

Spindle speed range: 0-3000rpm

Lateral feed range: 0.01-0.10mm/rev

Longitudinal feed range: 0.085-0.832mm/rev

Inch thread cutting range: 8-56T.P.I

Metric thread cutting range: 0.2-3.5mm

Small carriage stroke: 70mm

Mid-travel stroke: 160mm

Tailstock sleeve stroke: 70mm

Tailstock sleeve taper: MT3

Motor power: 1500 Watt

Milling head part:

Spindle taper: MT2

Spindle travel: 52mm

Spindle speed range: 50-2250rpm

Distance from spindle end to worktable: 380mm

Distance from spindle end to column: 190mm

Motor power: 750W

Packing size (machine): 1470mm*700mm*1040mm

Packing size (bed foot): 800mm*580mm*415mm

Net weight: 325kg
