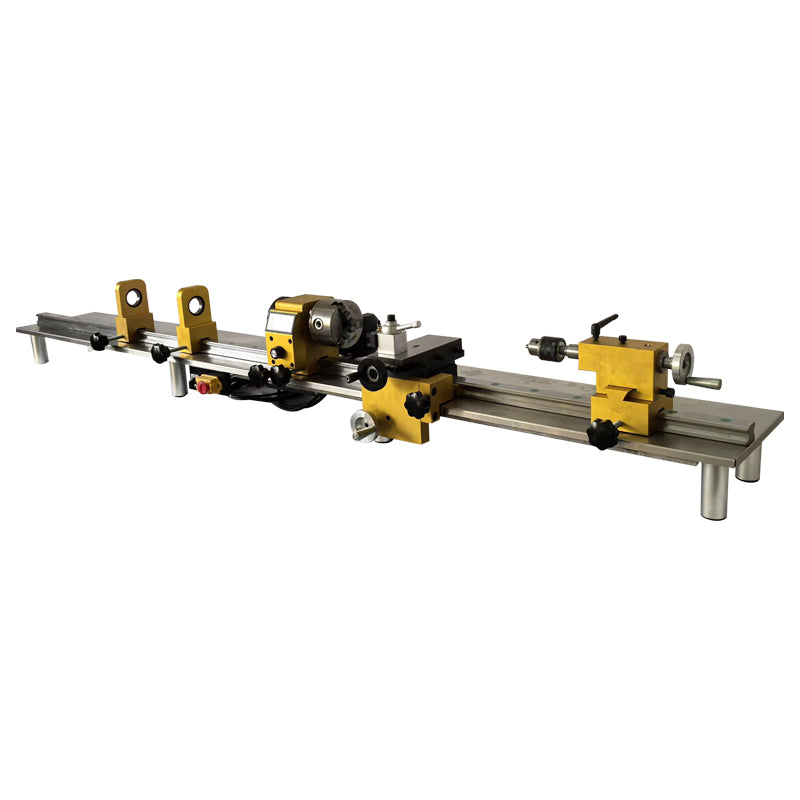

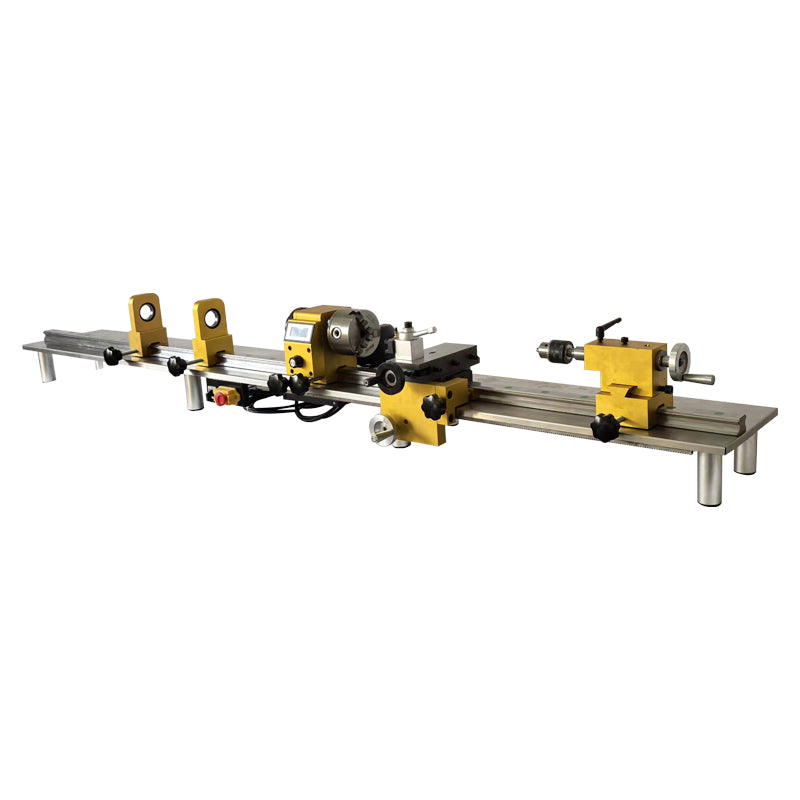

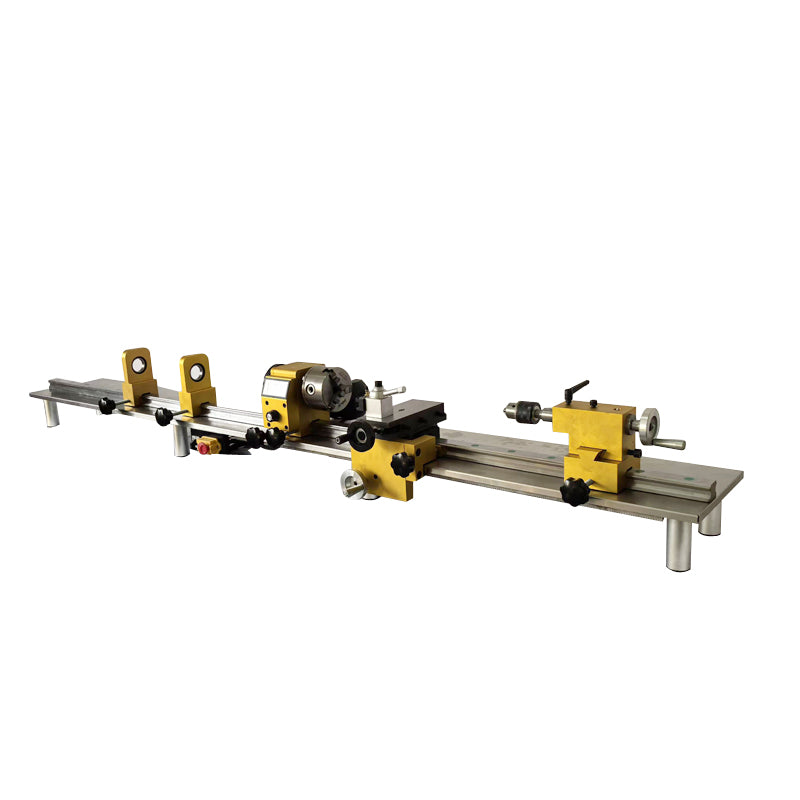

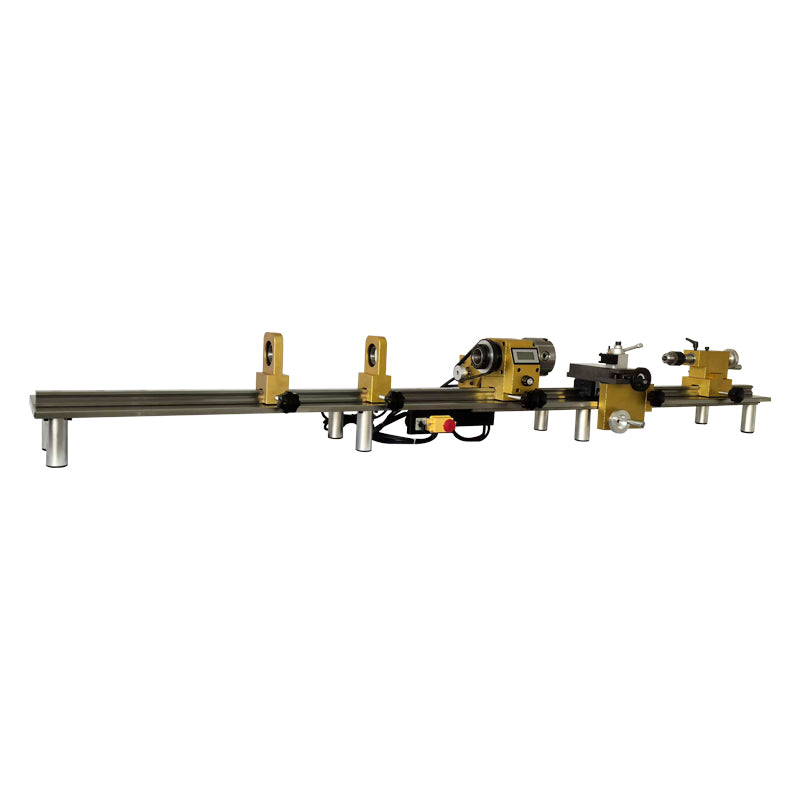

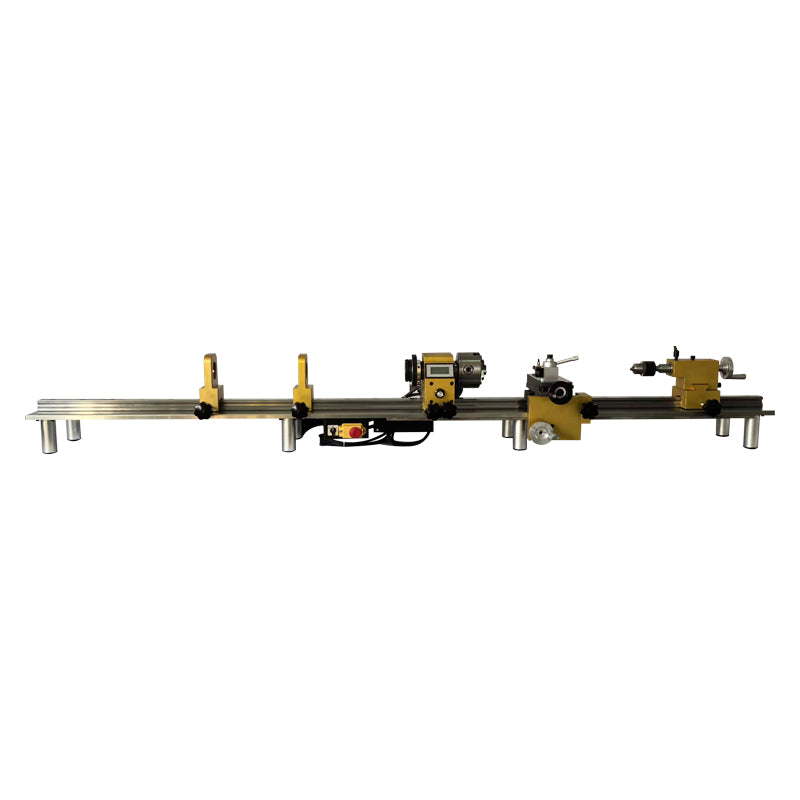

Advanced pool cue lathe, fast pool cue repair lathe, mirror billiard cue lathe

The bottom plate is made of high-end mirror stainless steel, with a 750W brushless motor, stepless speed regulation with forward and reverse rotation and digital display, high-precision bearing seat, high-precision adjustable tailstock, high-precision spindle seat, 100mm chuck, 32mm through hole, and all parts can be moved arbitrarily on the linear guide rail.

The main tool holder adopts the same level of middle drag plate design as the factory lathe, which makes the movement more stable and does not let the tool go. It adopts American quick-change tool holder, which is convenient for tool change and accurate positioning.

Function: repair leather head, replace copper hoops, make copper hoops, repair handle, slot, change weight, change teeth, polish, etc.

[Material]: The billiard cue repair machine uses thickened steel plate as the bottom plate, and the surface of the bottom plate is wrapped with thickened stainless steel plate. The double tail bearing seat, tail seat and spindle seat are all made of aluminum. The bottom plate adopts a large-diameter thickened single linear guide design. The cue clamping concentricity is high, the whole machine is heavy, and the overall stability is high;

[Motor]: The pool cue repair machine is equipped with a 750W high-power brushless motor, voltage of 110V, 60hz, American standard plug, speed 0-3000r/min, forward and reverse stepless speed control box, and digital display function, strong power, stable operation, low noise, long service life;

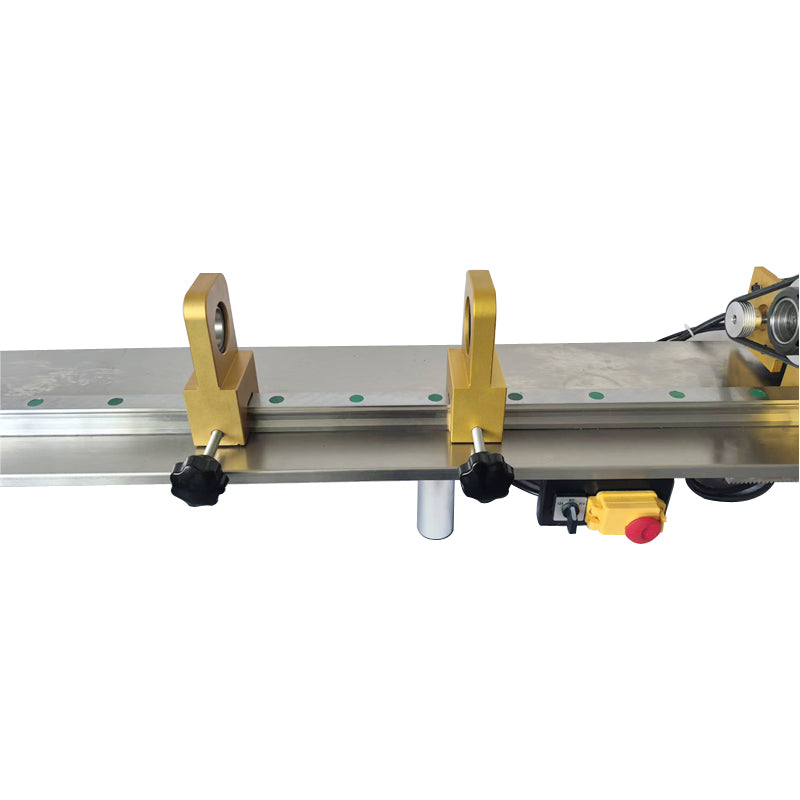

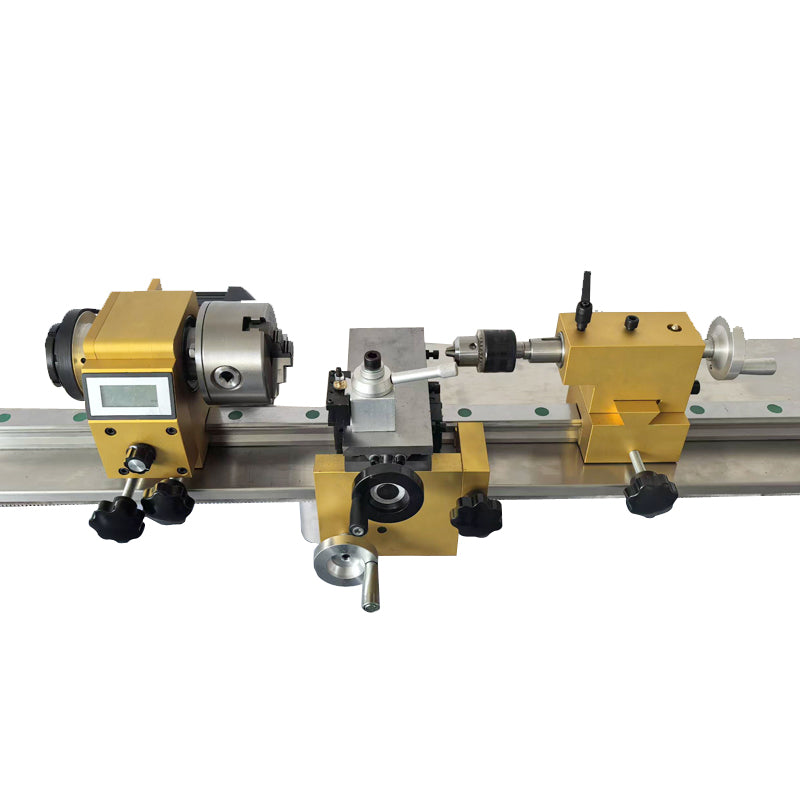

[Spindle]: The spindle through hole of the pool cue lathe is 32mm, and it adopts a 100mm high-precision linkage three-jaw chuck and a double-tail bearing seat design with an accuracy of 0.001 inches. It has high stability and concentricity for clamping the cue. Each part can move left and right on the guide rail, and has a large operating space;

[Middle carriage]: The pool cue lathe machine adopts a lathe-like middle carriage design, which makes the cutting more stable and accurate;

[Tool holder]: The pool cue lathe machine is equipped with an aluminum American-style quick-change tool holder, which allows for fast switching, precise positioning, wear resistance and lightness;

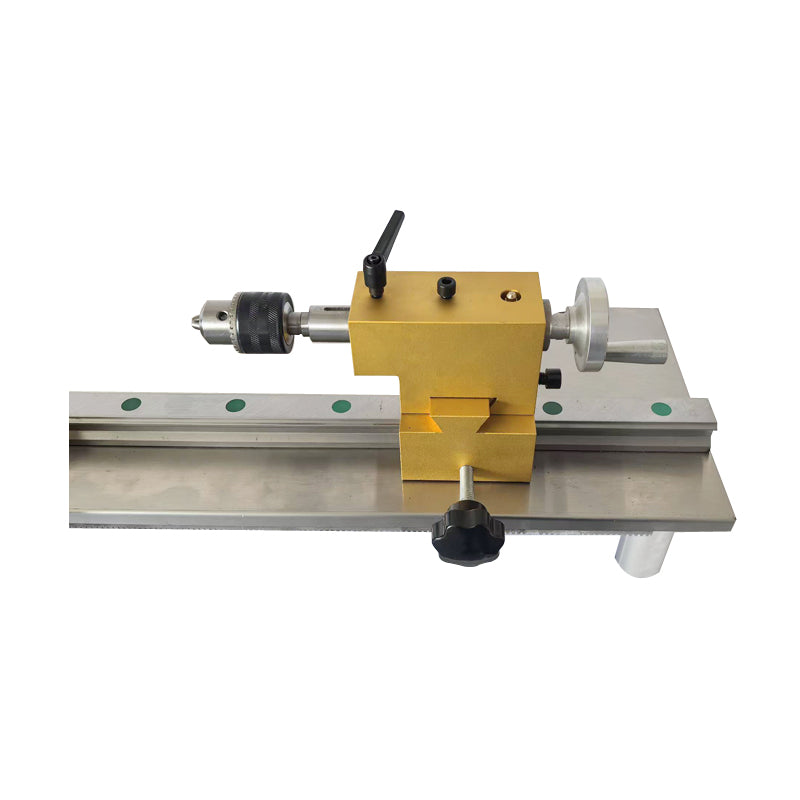

[Tailstock]: The pool cue repair lathe machine adopts a high-precision adjustable tailstock and is equipped with a 1.5-13mm drill chuck, which ensures precise centering and more stable drilling;

[Machine function]: Mainly used for the maintenance and repair of various clubs, such as changing and repairing leather heads, changing copper hoops, changing first angles, polishing and grinding maintenance of clubs, making copper hoops and first angles, changing counterweights, changing tapers, connecting teeth, slotting, foreskin handles, etc.

Color support customization

Motor Power:  750W

Voltage:110V/220V

Frequency: 50Hz/60Hz

Continuously Variable: 0--3000(Kw/rpm)

G.W/N.W: 130kg/105kg

Size:2000mm*370mm*270mm

Packing Dimension:2100mm*500mm*370mm
