Billiard cue repair machine, double guide rail repair machine, segmented repair machine, billiard cue machine tool

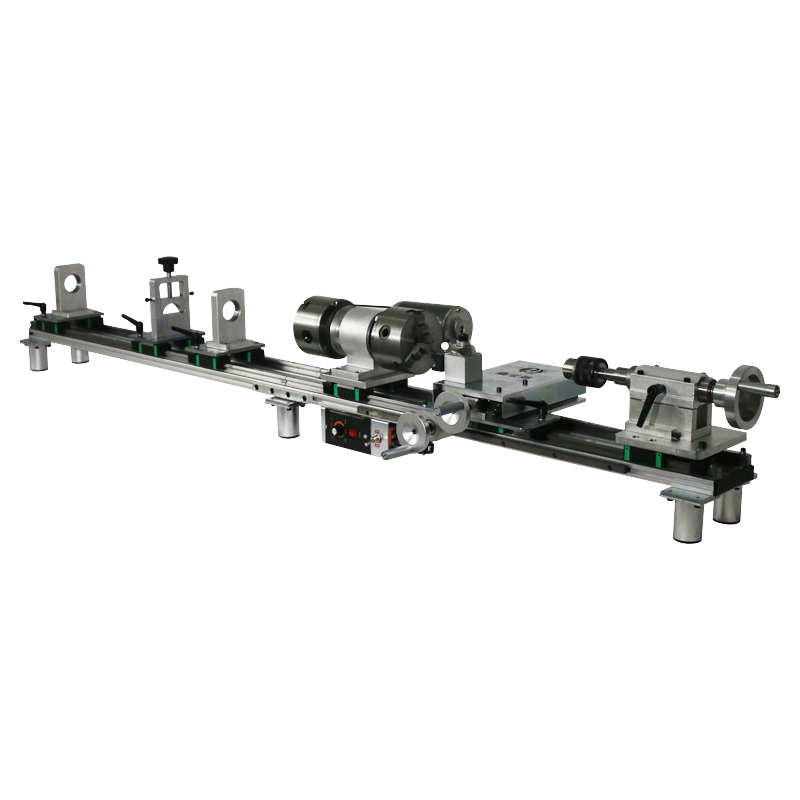

The segmented double-track double-chuck pool cue lathe can be freely installed and disassembled, is compact and light, easy to pack and transport, and simple to operate. Double-head double-track rod trimming machine, double-head with slide rail + double track, stable cutting, double tail support for more stability

One machine has multiple uses and powerful functions. It has 9 core functions, including repairing leather heads, replacing horns, replacing copper hoops, polishing, grinding, maintenance, straightening, wire winding, wrapping handles, repairing counterweights, grooving, etc.

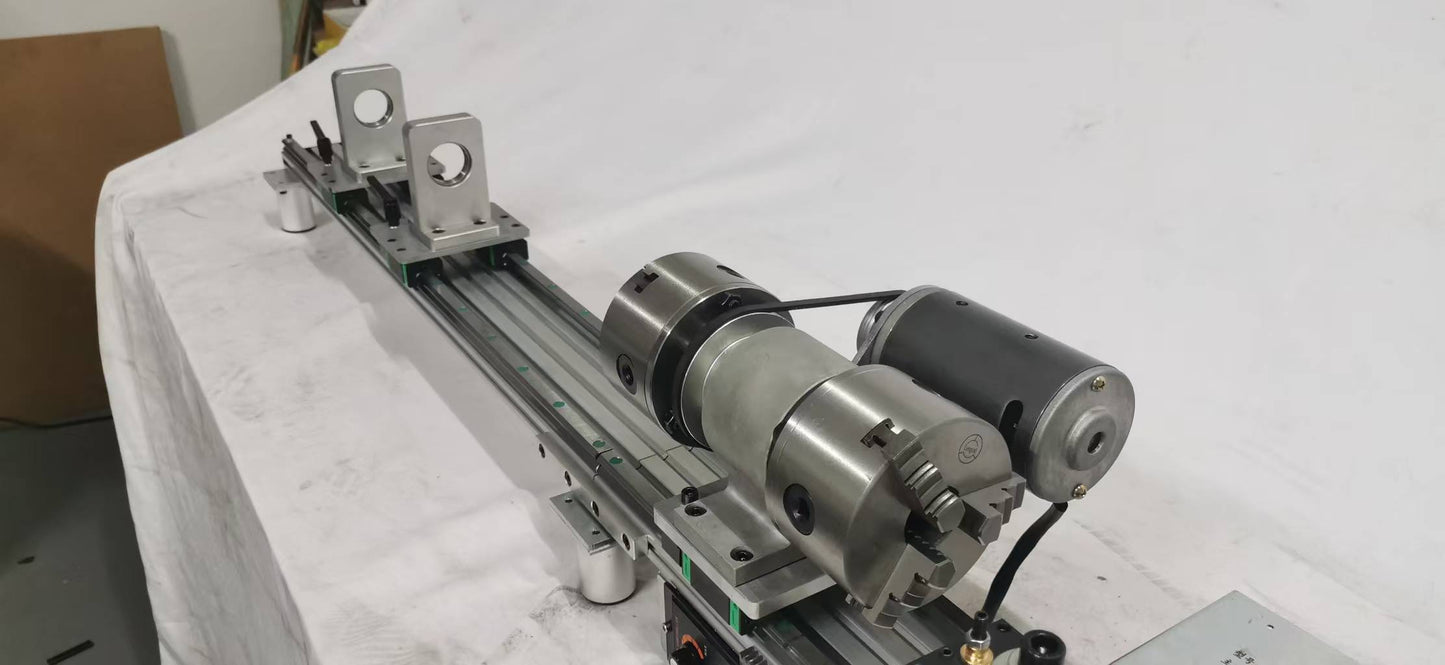

[Material] The billiard cue repair machine adopts an all-aluminum body, the double tail bearing seat, tail seat and spindle seat are all made of aluminum, with a segmented connection design and a double guide rail design on the aluminum alloy bottom plate, which makes the cue clamping more stable and has higher concentricity. The weight of the whole machine is relatively light, and it is packed in cartons for easy transportation and handling;

[Motor]: The pool cue repair machine is equipped with a 550W high-power brushless motor, voltage of 110V, 60Hz, American standard plug, speed 0-3000r/min, forward and reverse stepless speed control box, and digital display function, strong power, stable operation, low noise, long service life;

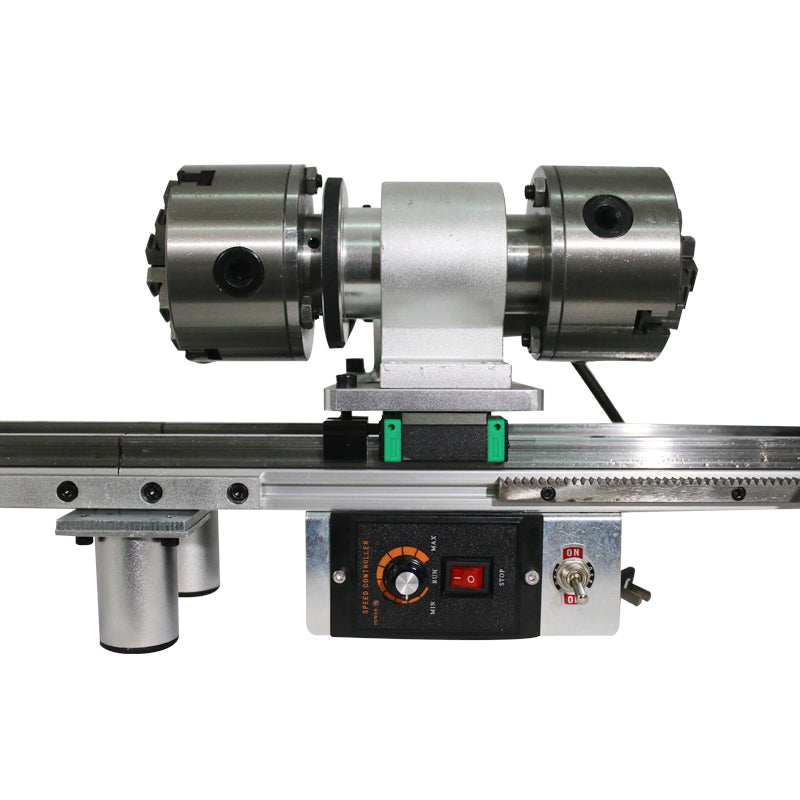

[Spindle]: The spindle through hole of the pool cue lathe is 32mm, and it adopts a 100mm high-precision linkage three-jaw chuck and a double-tail bearing seat design with an accuracy of 0.001 inches. It has high stability and concentricity for clamping the cue. Each part can move left and right on the guide rail, and has a large operating space;

[Tool holder]: The pool cue lathe machine is equipped with an aluminum American-style quick-change tool holder, which allows for fast switching, precise positioning, wear resistance and lightness;

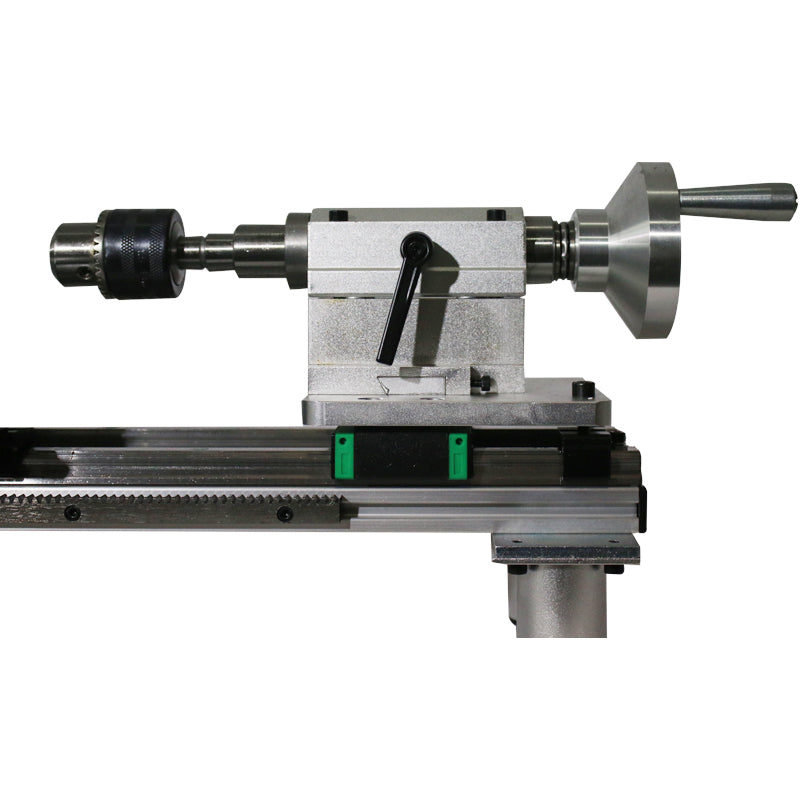

[Tailstock]: The pool cue repair lathe machine adopts a high-precision adjustable tailstock and is equipped with a 1.5-13mm drill chuck, which ensures precise centering and more stable drilling;

【Machine Function】: The pool cue repairing machine is mainly used for the maintenance and repair of various cues, such as replacing leather heads, replacing copper hoops, replacing first angles, making copper hoops and first angles, polishing and grinding cues, changing tapers, changing counterweights, etc.

Motor Power:  550W

Voltage:110V/220V

Frequency: 50Hz/60Hz

Continuously Variable: 0--3000(Kw/rpm)

G.W/N.W: 33kg/30kg

Size:1600mm*350mm*250mm

Packing Dimension:920mm*400mm*300mm
