Double-head double-track cue lathe, billiard cue repair machine, billiard rod machine tool, billiard cue repair lathe, billiard supplies

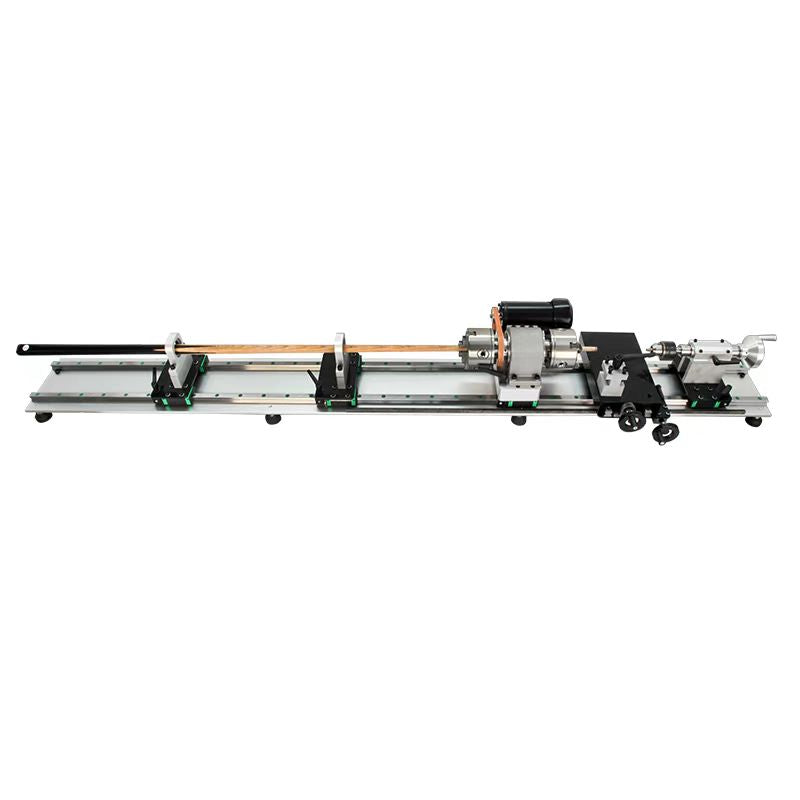

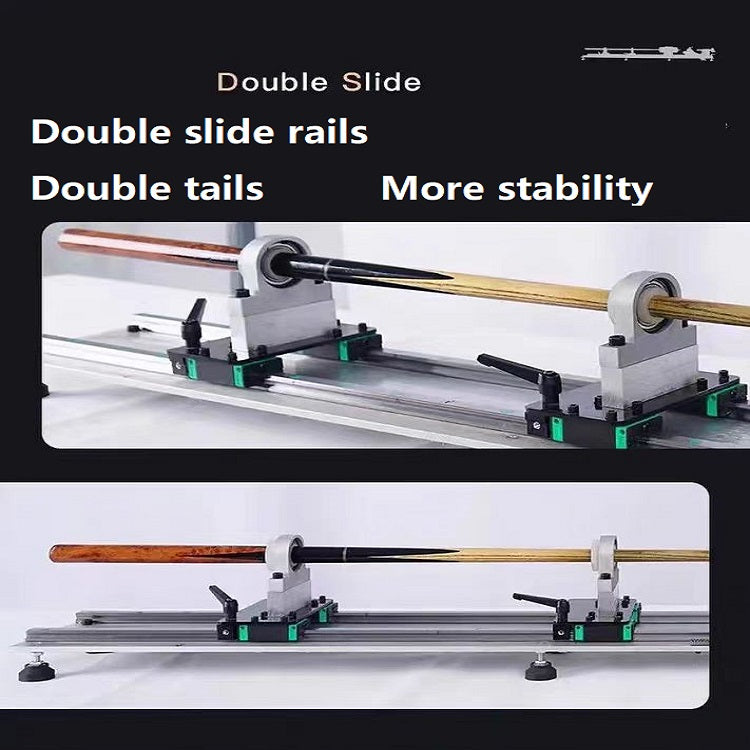

Double-track double-chuck cue repair lathe, double-head with slide rail + double track, stable cutting, double tail support is more stable.
Aluminum alloy workbench, all-metal rear hanger. The bracket rear hanger can be adjusted and telescopic, and the rear hanger can be retracted.
Aluminum plate bed, double precision slide rails, speed control motor.
One machine for multiple uses: trimming leather heads, changing copper hoops, changing first angles, straightening, polishing and grinding, changing counterweights, and trimming tail teeth.
High-precision calibration, professional model.

[Material]: The billiard cue repair machine is made of thickened aluminum plate integrated casting. The double tail bearing seat, tail seat and spindle seat are all made of aluminum. The aluminum plate adopts a double guide rail design. The cue clamping concentricity is high, the whole machine is heavy, and the overall stability is better;

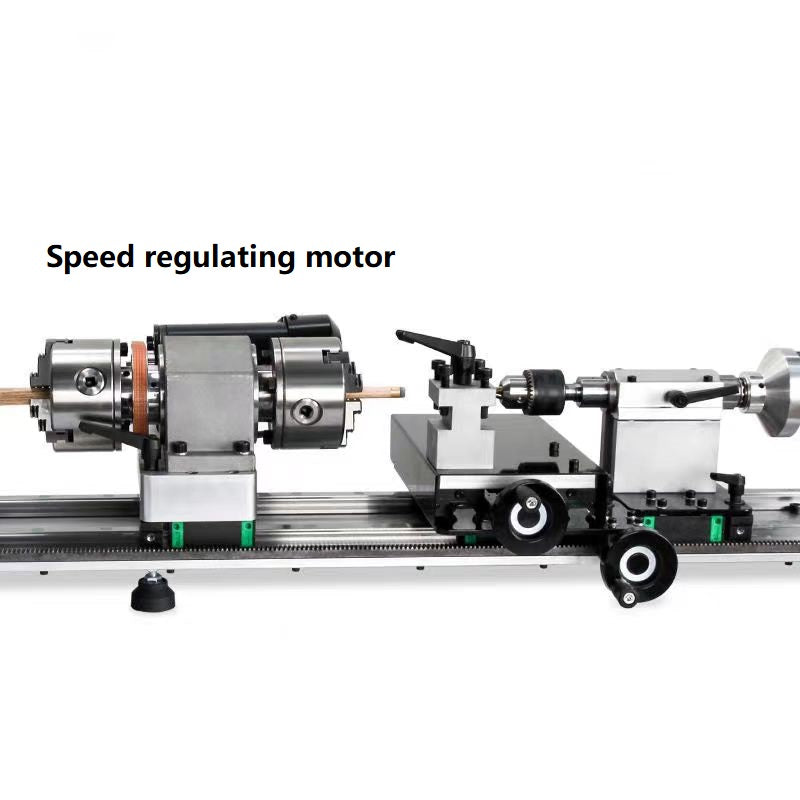

[Motor]: The pool cue repair machine is equipped with a 550W high-power brushless motor, voltage of 110V, 60Hz, American standard plug, speed 0-3000r/min, forward and reverse stepless speed control box, and digital display function, strong power, stable operation, low noise, long service life;

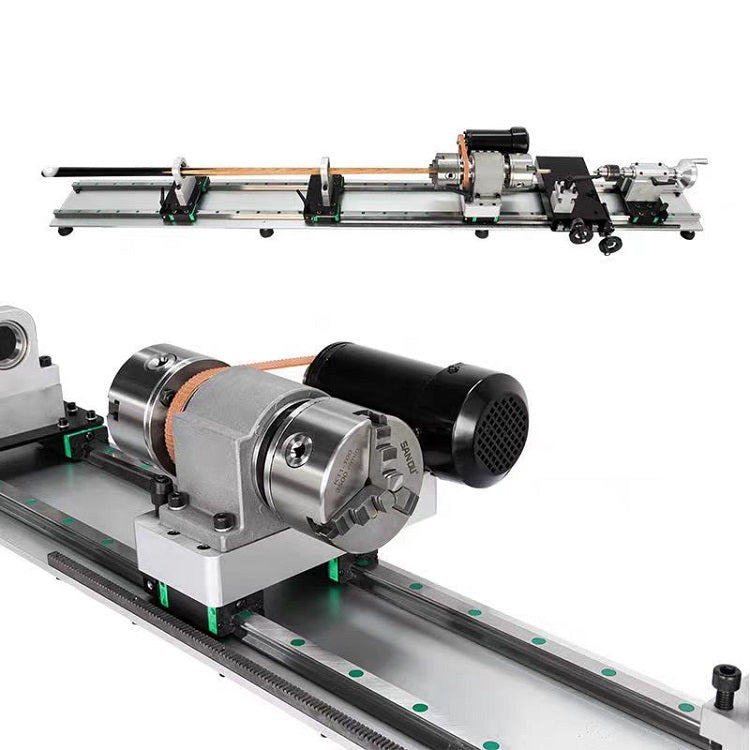

[Spindle]: The spindle through hole of the pool cue lathe is 32mm, and it adopts a 100mm high-precision linkage three-jaw chuck and a double-tail bearing seat design with an accuracy of 0.001 inches. It has high stability and concentricity for clamping the cue. Each part can move left and right on the guide rail, and has a large operating space;

[Tool holder]: The two-station ordinary tool holder of the pool cuelathe machine can also be equipped with an aluminum American quick-change tool holder, which features fast switching, precise positioning, wear resistance and light weight;

[Tailstock]: The pool cue repair lathe machine adopts a high-precision adjustable tailstock and is equipped with a 1.5-13mm drill chuck, which ensures precise centering and more stable drilling;

【Machine Function】: The pool cue repairing machine is mainly used for the maintenance and repair of various cues, such as replacing leather heads, copper hoops, changing the first angle, polishing and grinding the cue, making copper hoops and first angles, changing counterweights, changing tapers, connecting teeth, slotting, wrapping handles, etc.

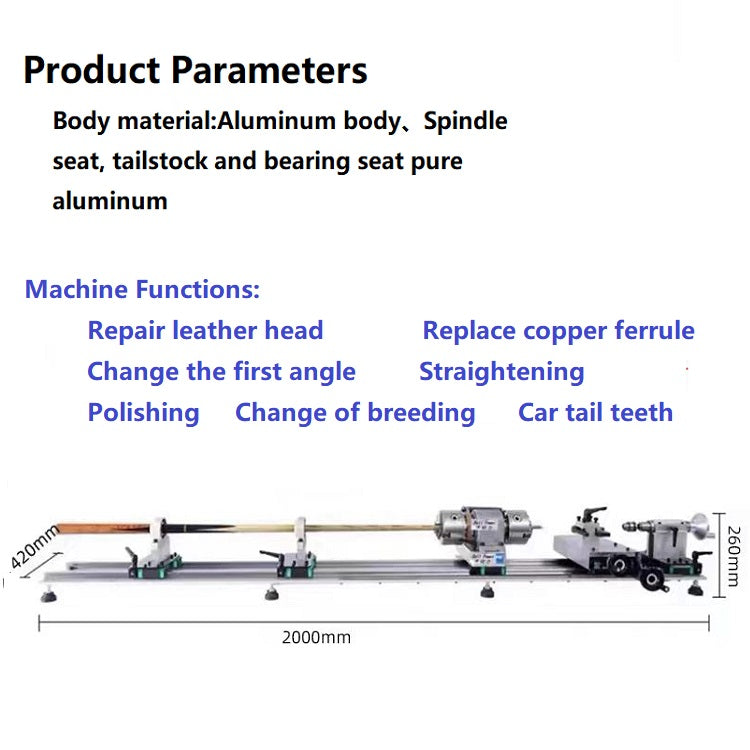

Motor Power:  550W

Voltage:110V/220V

Frequency: 50Hz/60Hz

Continuously Variable: 0--3000(Kw/rpm)

Size:1900mm*420mm*260mm

G.W/N.W: 72.6kg/48.6kg

Packing Dimension:1970mm*450mm*350mm
