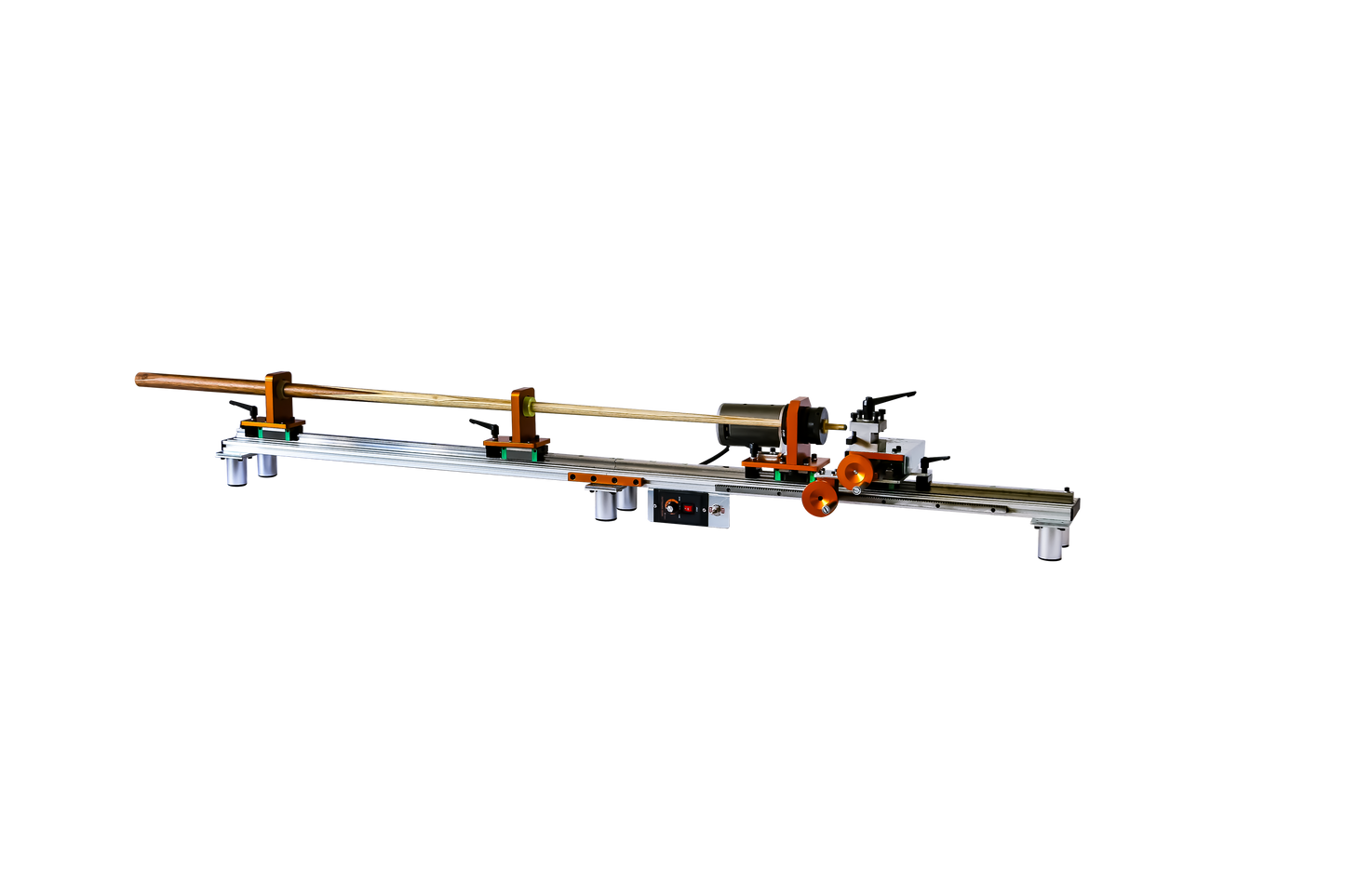

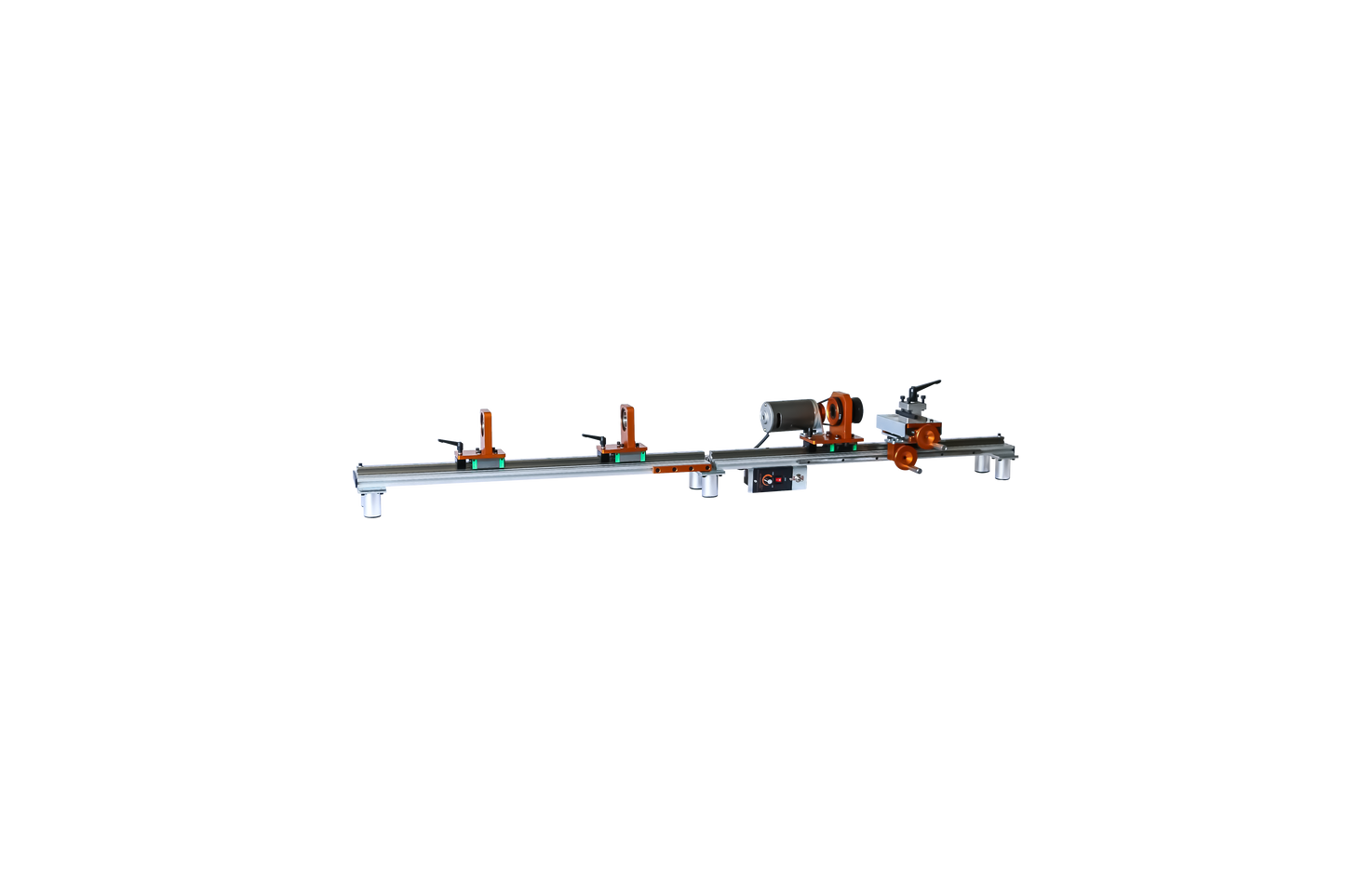

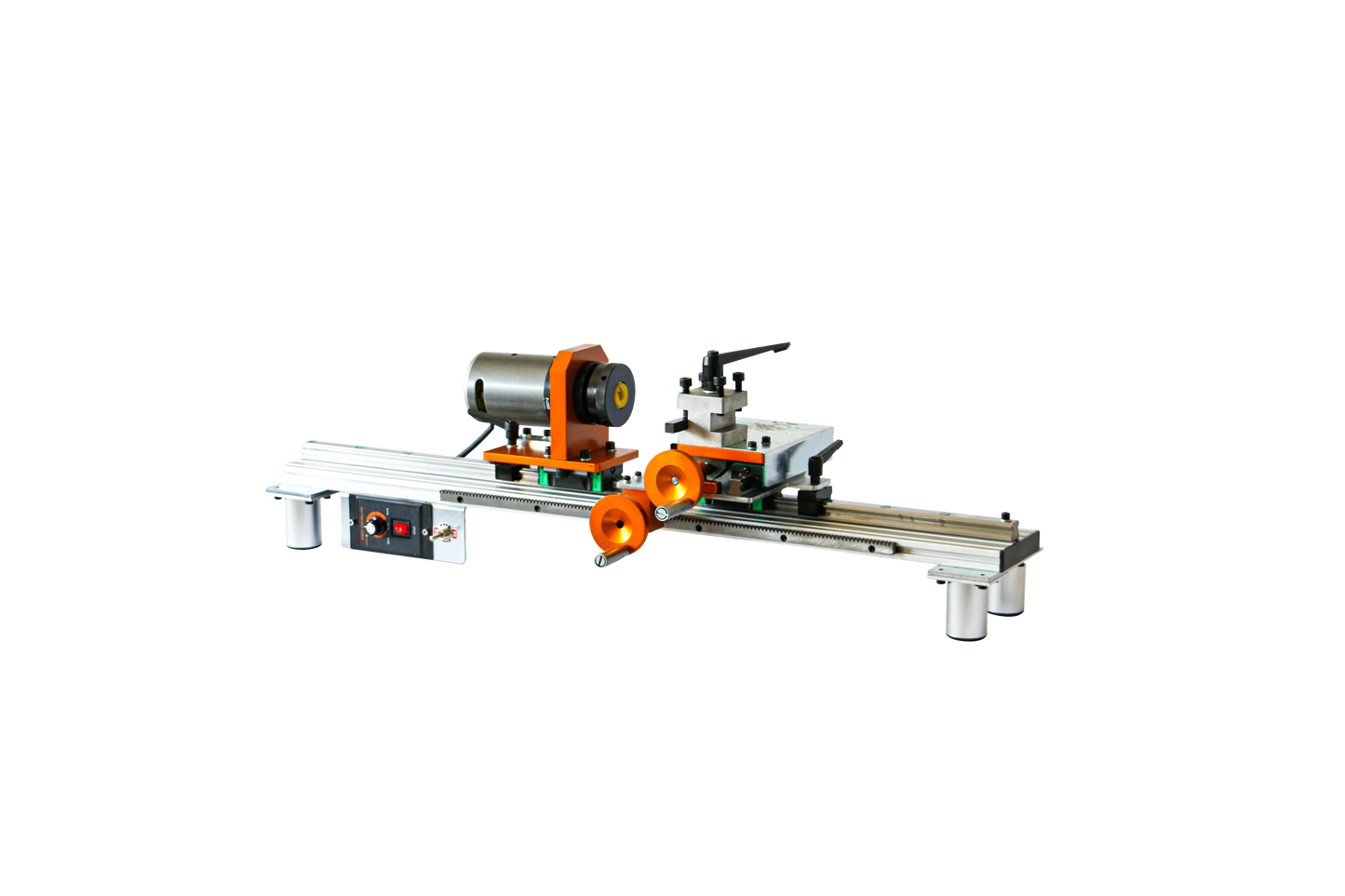

Detachable cue repair lathe, billiard cue repair machine, simple billiard cue repair lathe, billiard cue machine tool

New detachable cue lathe、All-aluminum body、Segmented connection design、More convenient packaging and transportation、Pure copper motor、Forward and reverse stepless speed regulation、Easy to operate、Finishing, mobile spindle、Freely adjustable working range、High precision manual ER chuck、Replaceable leather head, copper ferrule, and horn、Polishing, grinding, maintenance.

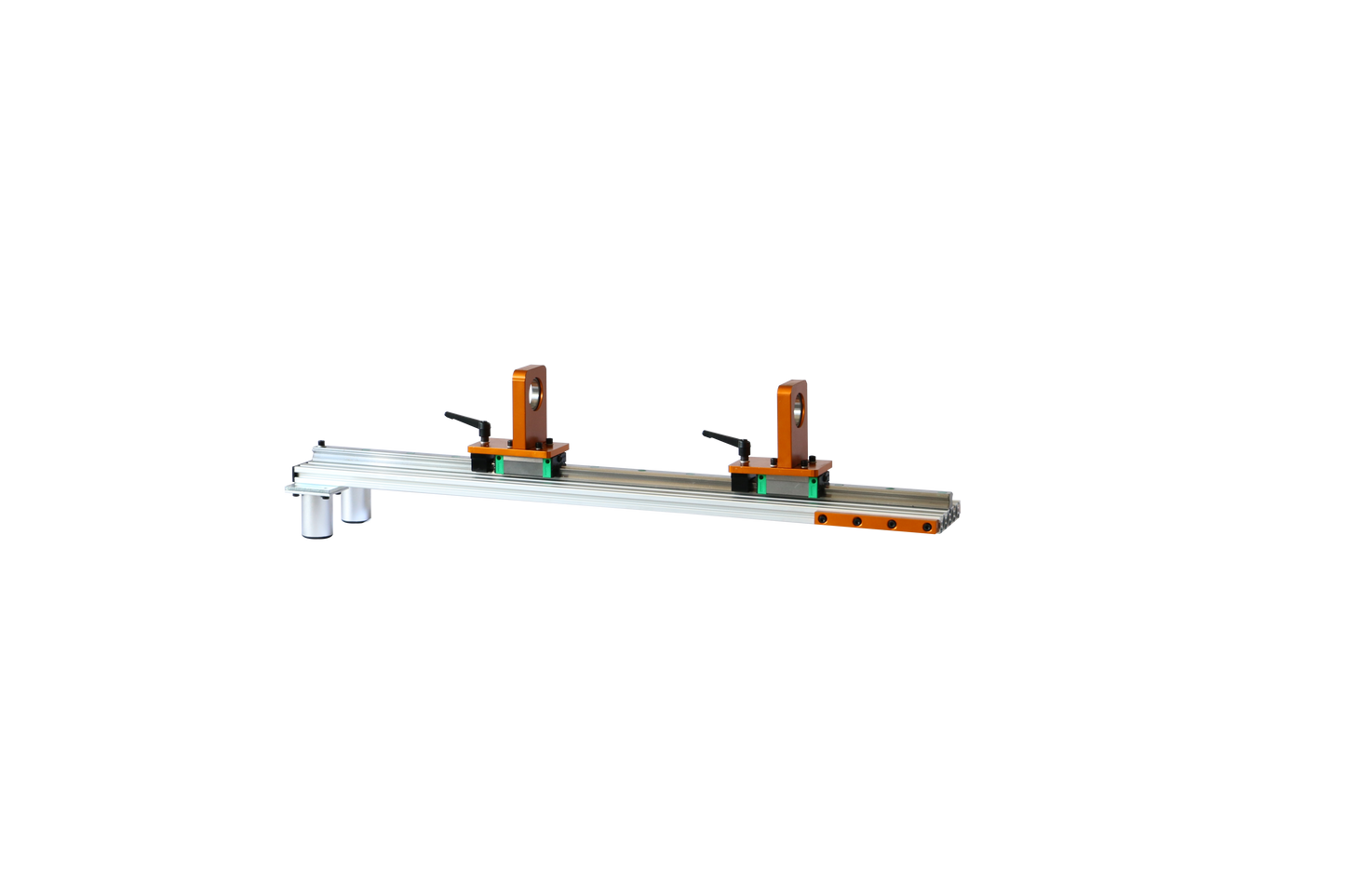

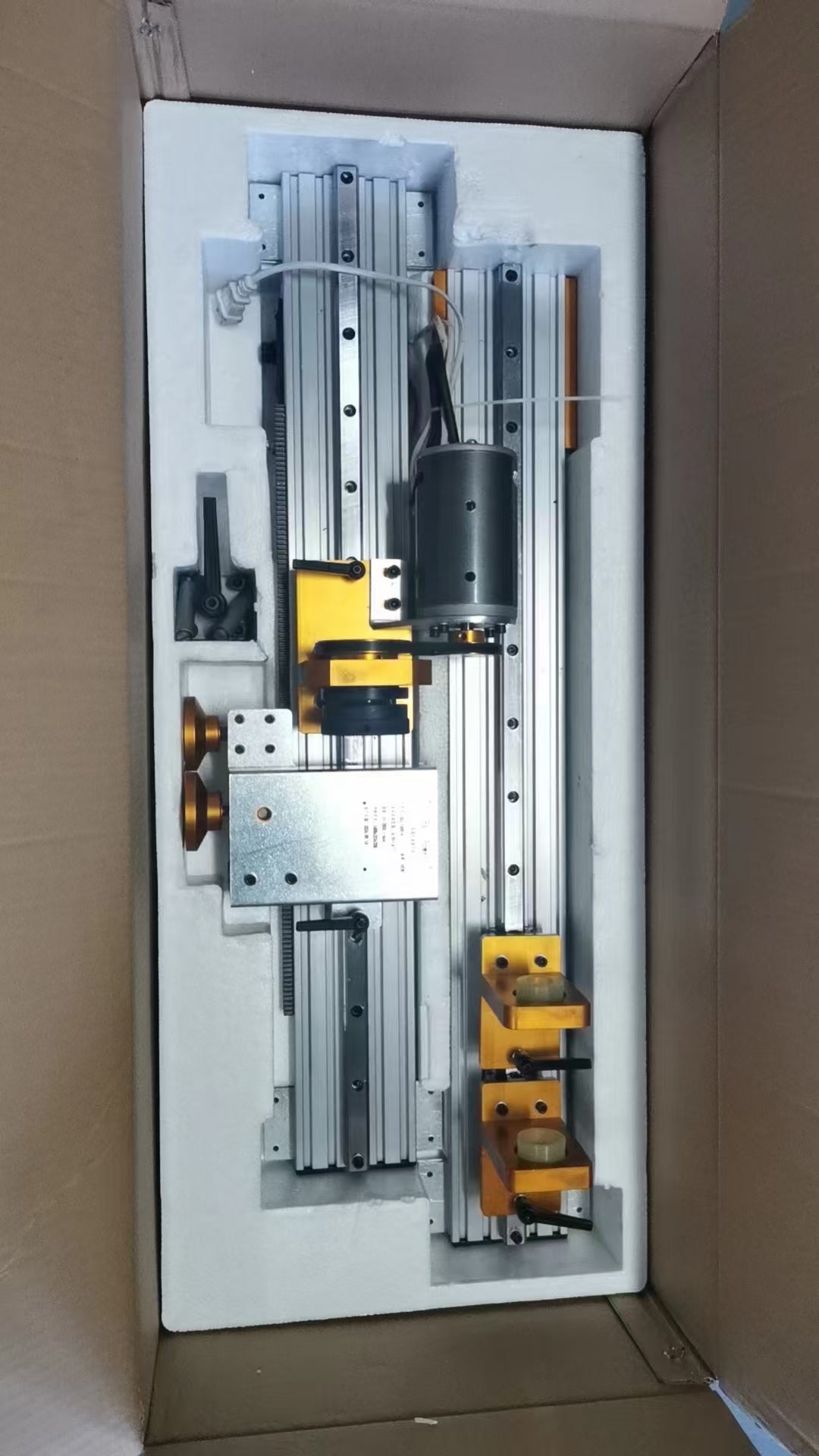

[Material]: The billiard cue repair machine adopts an all-aluminum body, and the double tail bearing seat, tail seat and spindle seat are all made of aluminum. The segmented connection design is light in weight and packed in cartons for easy transportation;

[Motor]: The pool cue repair machine is equipped with a 550W brushless motor, voltage of 110V, 60Hz, American standard plug, speed 0-3000r/min, forward and reverse stepless speed control box, strong power, stable operation, low noise, long service life;

[Spindle]: The spindle through hole of the pool cue lathe is 18mm, and it adopts a high-precision hand-tightened ER chuck with an accuracy of 0.001-0.002 inches. It adopts a double-tail bearing seat design with good stability and high precision. Each part can move left and right on the guide rail, and the operating space is large;

[Tool holder]: The pool cue lathe machine is equipped with an aluminum American-style quick-change tool holder, which allows for fast switching, precise positioning, wear resistance and lightness;

【Machine Function】: The pool cue repairing machine is mainly used for the maintenance and repair of various cues, such as replacing leather heads, replacing copper hoops, replacing first angles, making copper hoops and first angles, polishing and grinding, straightening, etc.

Motor Power:550W

Voltage:110V/220V

Frequency: 50Hz/60Hz

Continuously Variable: 0--3000(Kw/rpm)

G.W/N.W: 21kg/18kg

Size:1600mm*350mm*250mm

Packing Dimension:920mm*400mm*300mm
