210-750 stroke lathe cue repair machine, 210 lathe billiard cue repair machine, billiard cue machine tool, cue lathe

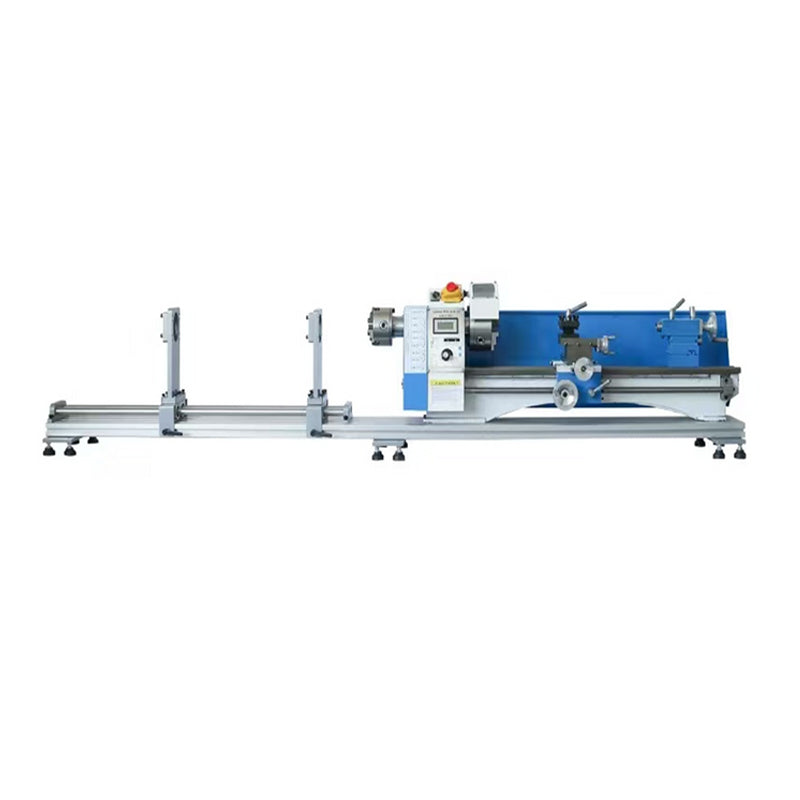

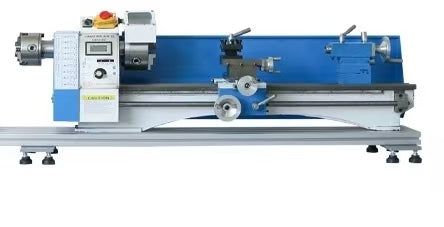

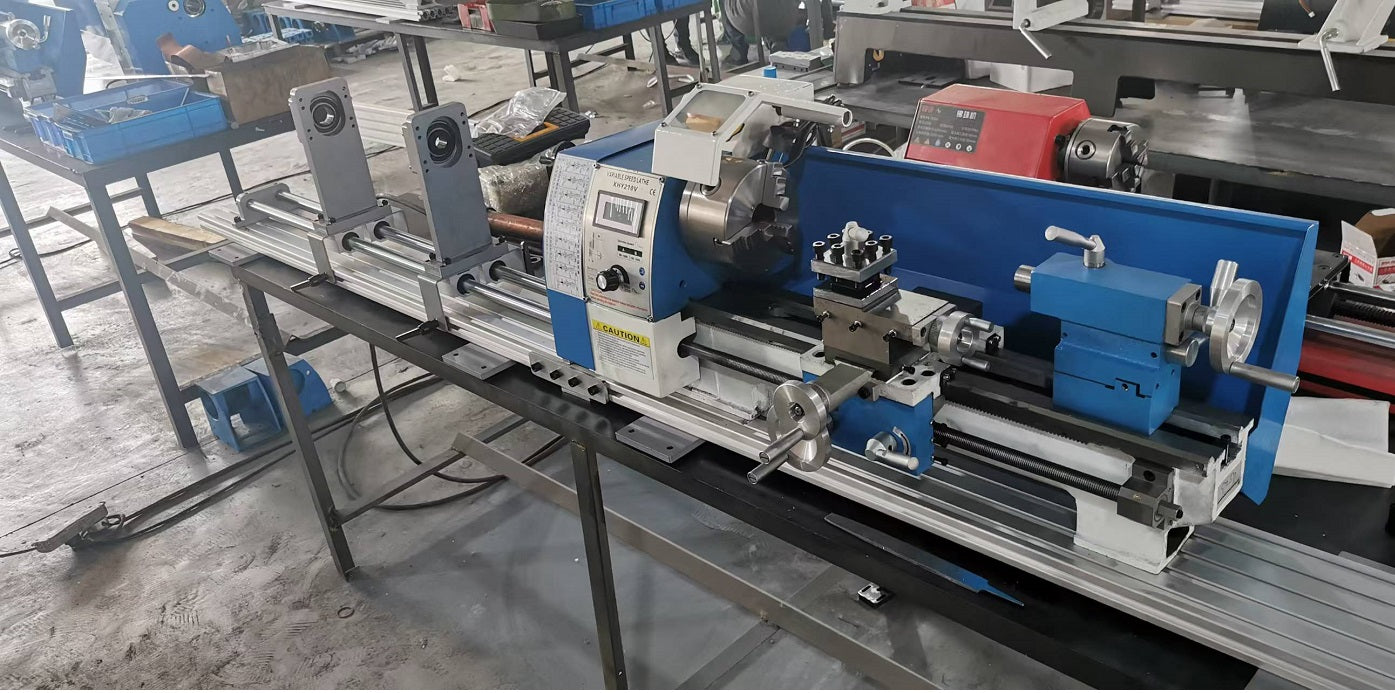

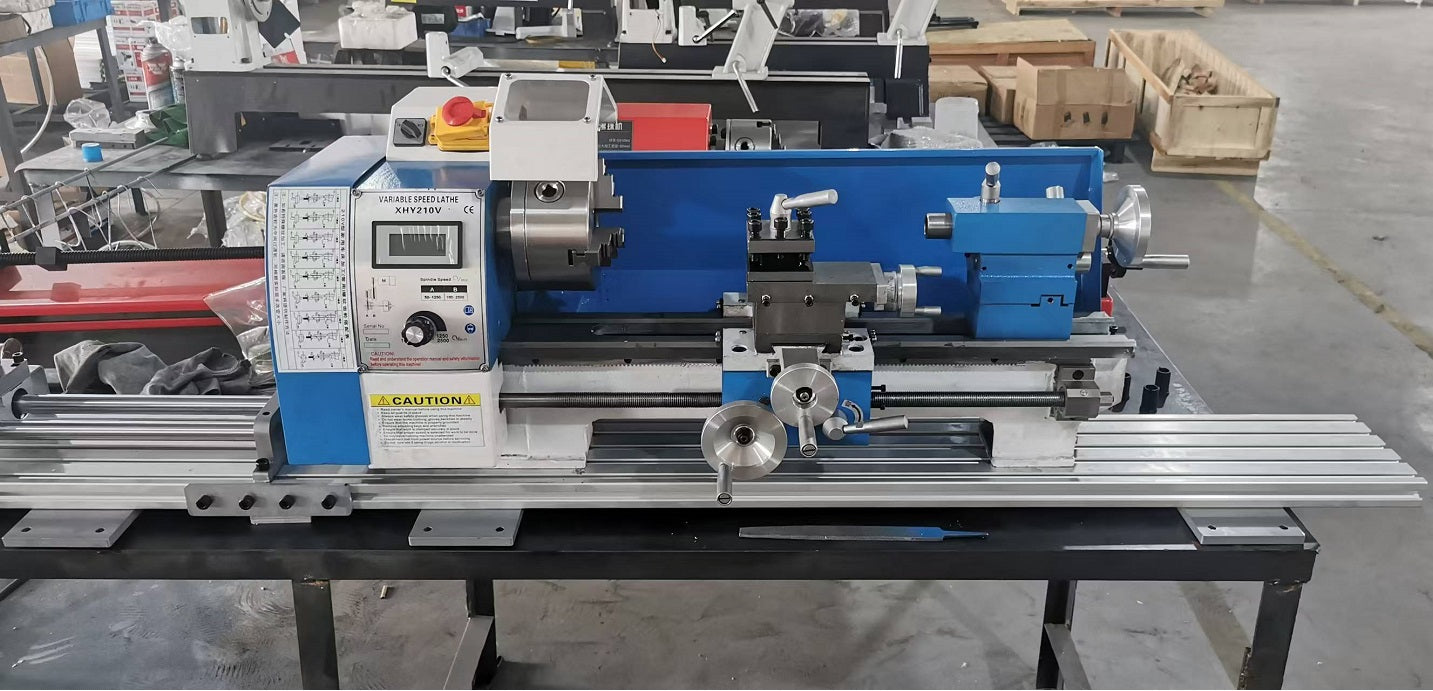

210-750 stroke lathe with integrated aluminum alloy bearing bracket, 900W brushless motor, 100 metal chuck on the outside, 125-3 jaw metal chuck on the inside, 750mm inner processing length of bed rail. Except for straightening, the rod repair function can be done.

Repair leather heads, change horns and copper hoops, customize horns and copper hoops, slot the back handle, wind wire, wrap the handle, add or remove counterweights, repair loose counterweights, open wires, polish, grind and maintain.

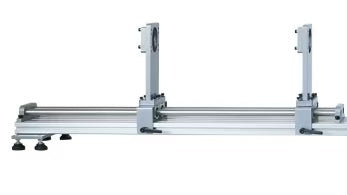

[Material]: The billiard cue repair machine uses a 210-750 metal lathe as the main machine, and the body is made of hardened cast iron, which has high hardness and good stability. It is equipped with an aluminum alloy bracket as the auxiliary support system for the back of the cue;

[Motor]: The pool cue repair machine is equipped with a 900W brushless motor, voltage of 110V, 60Hz, American standard plug, equipped with forward and reverse stepless speed regulation and digital display function, speed 0-1400r/min, strong power, stable operation, low noise, long service life;

[Spindle]: The spindle through hole of the pool cue lathe is 38mm. The left chuck is a 100mm three-jaw chuck, and the right chuck is a 125mm three-jaw chuck. The cue clamping stability is good, the accuracy is less than 0.001 inches, and the operating space is large; the right chuck can be equipped with a 125mm four-jaw chuck or a six-jaw chuck;

[Drag plate]: The pool cue lathe machine uses a lathe-type high-precision drag plate, which has good feed stability and is equipped with an automatic tool feeding function;

[Tailstock]: The pool cue repair lathe machine adopts a high-precision adjustable tailstock and is equipped with a 1.5-13mm drill chuck, which ensures precise centering and more stable drilling.[Tool holder]: The pool cue lathe machine uses a four-station ordinary tool holder, and can be equipped with a European-style quick-change tool holder;

【Machine Function】: The pool cue repairing machine can repair the leather tip, copper hoops, and lead angle of various cues, customize copper hoops and lead angles, maintain cues, change tapers, wrap handles, straighten, connect teeth, change counterweights, slot, wrap handles, etc.

Motor Power:  900W

Voltage:110V/220V

Frequency: 50Hz/60Hz

Continuously Variable: 0--3000(Kw/rpm)

G.W/N.W: 118kg/98kg

Size:2260mm*390mm*370mm

Packing Dimension:1340mm*600mm*510mm
